Specifications :

• MFG Part Number : CFWNM5
• Product Group: CFWN
• Material: Steel
• Finish: Light Oil
• Thread Type: Metric
• Thread Size: M5x0.8
• Thread Code: M5
• Hole Diameter: 6.35 +0.10 -0.00
• Sheet Thickness: 0.77

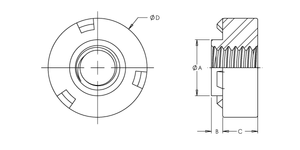

• Dim A Max.: 6.32
• Dim B Max.: 0.77
• Dim C: 3.78 ±0.10
• Dim D: 11.17 +0.00 -0.25
• CL to Edge Distance: 5.59
• 1.500mm CRS Push Out: 3910 N
• 1.500mm CRS Torque Out: 6.3 N-m
• 1.500mm 300 Series Stainless Steel Push Out: N/A
• 1.500mm 300 Series Stainless Steel Torque Out: N/A
