Specifications :

• MFG Part Number : CFWNM4
• Product Group: CFWN
• Material: Steel
• Finish: Light Oil
• Thread Type: Metric
• Thread Size: M4x0.7
• Thread Code: M4
• Hole Diameter: 5.53 +0.10 -0.00
• Sheet Thickness: 0.77

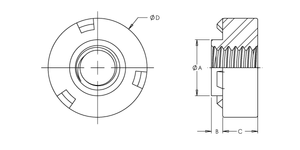

• Dim A Max.: 5.5
• Dim B Max.: 0.77
• Dim C: 2.58 ±0.10
• Dim D: 9.42 +0.00 -0.25
• CL to Edge Distance: 4.71
• 1.500mm CRS Push Out: 3380 N
• 1.500mm CRS Torque Out: 3.7 N-m
• 1.500mm 300 Series Stainless Steel Push Out: N/A
• 1.500mm 300 Series Stainless Steel Torque Out: N/A
