Specifications :

• MFG Part Number : CGS4MM-10
• Product Group: CGS
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: Unthreaded
• Hole Diameter: 4.5 +0.08 -0.00
• Sheet Thickness: 1
• CRS Sheet Hardness: 66 HRB

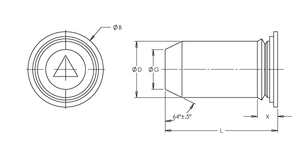

• Dim B: 6.12 ±0.40
• Dim D: 4.00 ±0.05
• Dim G: 2.82 ±0.15
• Dim L: 10.0 ±0.4
• X Max.: 2.29
• CL to Edge Distance: 7.1
• CRS Installation Force: 26.4 kN
• CRS Push Out: 1.54 kN
• 5052 H34 Aluminum Sheet Hardness: 19 HRB
• 5052 H34 Aluminum Installation Force: 22 kN
• 5052 H34 Aluminum Push Out: 0.89 kN
