Specifications :

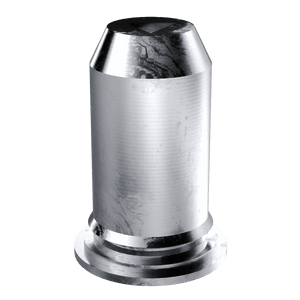

• MFG Part Number : CGS3MM-8
• Product Group: CGS
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: Unthreaded
• Hole Diameter: 3.5 +0.08 -0.00
• Sheet Thickness: 1
• CRS Sheet Hardness: 65 HRB

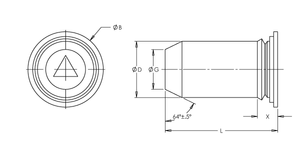

• Dim B: 5.20 ±0.40
• Dim D: 3.00 ±0.05
• Dim G: 2.11 ±0.15
• Dim L: 8.0 ±0.4
• X Max.: 2.29
• CL to Edge Distance: 6.4
• CRS Installation Force: 22 kN
• CRS Push Out: 0.98 kN
• 5052 H34 Aluminum Sheet Hardness: 22 HRB
• 5052 H34 Aluminum Installation Force: 12 kN
• 5052 H34 Aluminum Push Out: 0.56 kN
