Specifications :

• MFG Part Number : CPLCM3
• Product Group: CPLC
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M3x0.5
• Thread Code: M3
• Hole Diameter: 6.00 +0.08 -0.00
• Sheet Thickness: 1.000-1.780

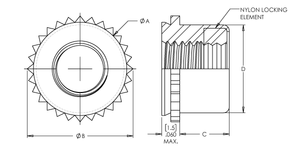

• Dim A Max.: 5.98
• Dim B Max.: 7.01
• Dim C Max.: 3.56
• Dim D Max.: 5.52
• CL to Edge Distance: 4.32
• 1.500mm CRS Installation Force: 13.34 kN
• 1.200mm CRS Installation Force: 13.34 kN
• 1.200mm CRS Push Out: 1000 N
• 1.200mm CRS Torque Out: 2.25 N-m
• 1.500mm 5052 H34 Aluminum Intallation Force: 8.90 kN
• 1.500mm 5052 H34 Aluminum Push Out: 1000 N
• 1.500mm 5052 H34 Aluminum Torque Out: 2.25 N-m
