Specifications :

• MFG Part Number : CPLC832
• Product Group: CPLC
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 8-32 UNC
• Thread Code: 832
• Hole Diameter: 0.297 +0.003 -0.00
• Sheet Thickness: 0.040-0.070

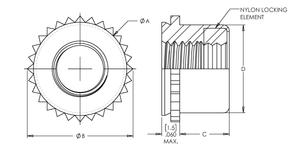

• Dim A Max.: 0.296
• Dim B Max.: 0.338
• Dim C Max.: 0.155
• Dim D Max.: 0.278
• CL to Edge Distance: 0.184
• .060in CRS Max Tightening Torque: 19.1 in-lbs
• .060in CRS Installation Force: 3000 lbs
• .060in CRS Push Out: 290 lbs
• .060in CRS Torque Out: 60 in-lbs
• .060in 5052 H34 Aluminum Installation Force: 2000 lbs
• .060in 5052 H34 Aluminum Push Out: 290 lbs
• .060in 5052 H34 Aluminum Torque Out: 60 in-lbs
