Specifications :

• MFG Part Number : PSS-M6-0
• Product Group: PSS

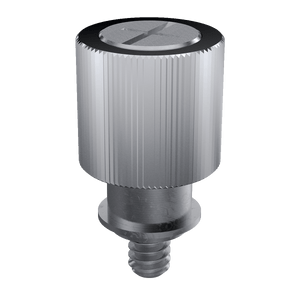

• Material: Aluminum Knob; Steel Base; Stainless Screw
• Thread Type: Metric
• Thread Size: M6x1.0
• Thread Code: M6
• Smooth Head
• Hole Diameter: 9.53 +0.08 -0.00
• Sheet Thickness: 0.92

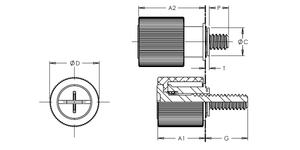

• Dim A1 Nom.: 13.46
• Dim A2: 20.07
• Dim C Max.: 9.5
• Dim D: 14.61 ±0.25
• Dim G: 7.37 ±0.64
• Dim P: 0.00 ±0.64
• Dim T Max.: 0.92
• CL to Edge Distance: 11.68
• CRS Installation Force: 22.2 kN
• CRS Push Out: 865 N
• 5052 H34 Aluminum Installation Force: 15.6 kN
• 5052 H34 Aluminum Push Out: 465 N
