Specifications :

• MFG Part Number : PSS-M5-2
• Product Group: PSS
• Material: Aluminum Knob; Steel Base; Stainless Screw
• Thread Type: Metric
• Thread Size: M5x0.8
• Thread Code: M5
• Smooth Head
• Hole Diameter: 7.92 +0.08 -0.00
• Sheet Thickness: 0.92

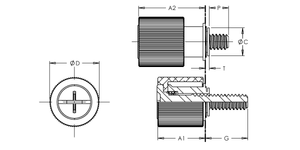

• Dim A1 Nom.: 11.43
• Dim A2: 16.26
• Dim C Max.: 7.9
• Dim D: 13.06 ±0.25
• Dim G: 8.89 ±0.64
• Dim P: 3.05 ±0.64
• Dim T Max.: 0.92
• CL to Edge Distance: 8.38
• CRS Installation Force: 20.0 kN
• CRS Push Out: 710 N
• 5052 H34 Aluminum Installation Force: 13.3 kN
• 5052 H34 Aluminum Push Out: 445 N
