Specifications :

• MFG Part Number : CKFSE632-12
• Product Group: CKFSE
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 6-32 UNC
• Thread Code: 632
• Hole Diameter: 0.213 +0.003 -0.000
• Sheet Thickness: 0.06

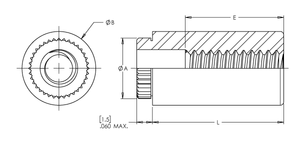

• Dim A: 0.231 ±0.003
• Dim B: 0.281 ±0.005
• Dim E: FULL
• Dim L: 0.375 ±0.005
• CL to Edge Distance: 0.22
• .060in Fiberglass Installation Force: 500 lbs.
• .060in Fiberglass Push Out: 80 lbs.
• .060in Fiberglass Torque Out: 30 in-lbs.
