Specifications :

• MFG Part Number : CKFSE440-8
• Product Group: CKFSE
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 4-40 UNC
• Thread Code: 440
• Hole Diameter: 0.166 +0.003 -0.000
• Sheet Thickness: 0.06

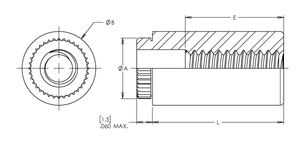

• Dim A: 0.184 ±0.003
• Dim B: 0.219 ±0.005
• Dim E: FULL
• Dim L: 0.250 ±0.005
• CL to Edge Distance: 0.17
• .060in Fiberglass Installation Force: 400 lbs.
• .060in Fiberglass Push Out: 65 lbs.
• .060in Fiberglass Torque Out: 15 in-lbs.
