Specifications :

• MFG Part Number : CKFS21024
• Product Group: CKFS2
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 10-24 UNC
• Thread Code: 1024
• Hole Diameter: 0.272 +0.003 -0.000
• Sheet Thickness: 0.06

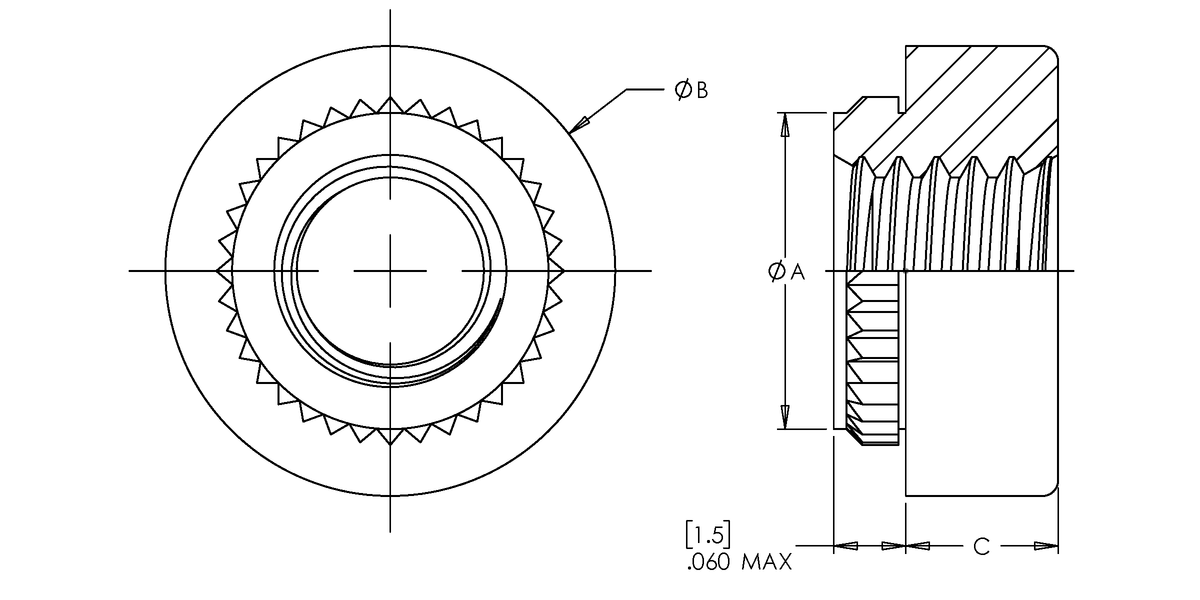

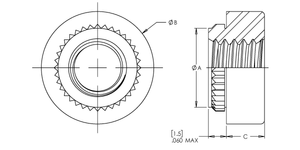

• Dim A: 0.290 ±0.003
• Dim B: 0.375 ±0.005
• Dim C: 0.127 ±0.005
• CL to Edge Distance: 0.28
• .060in Fiberglass Installation Force: 700 lbs.
• .060in Fiberglass Push Out: 100 lbs.
• .060in Fiberglass Torque Out: 40 in-lbs.
