Specifications :

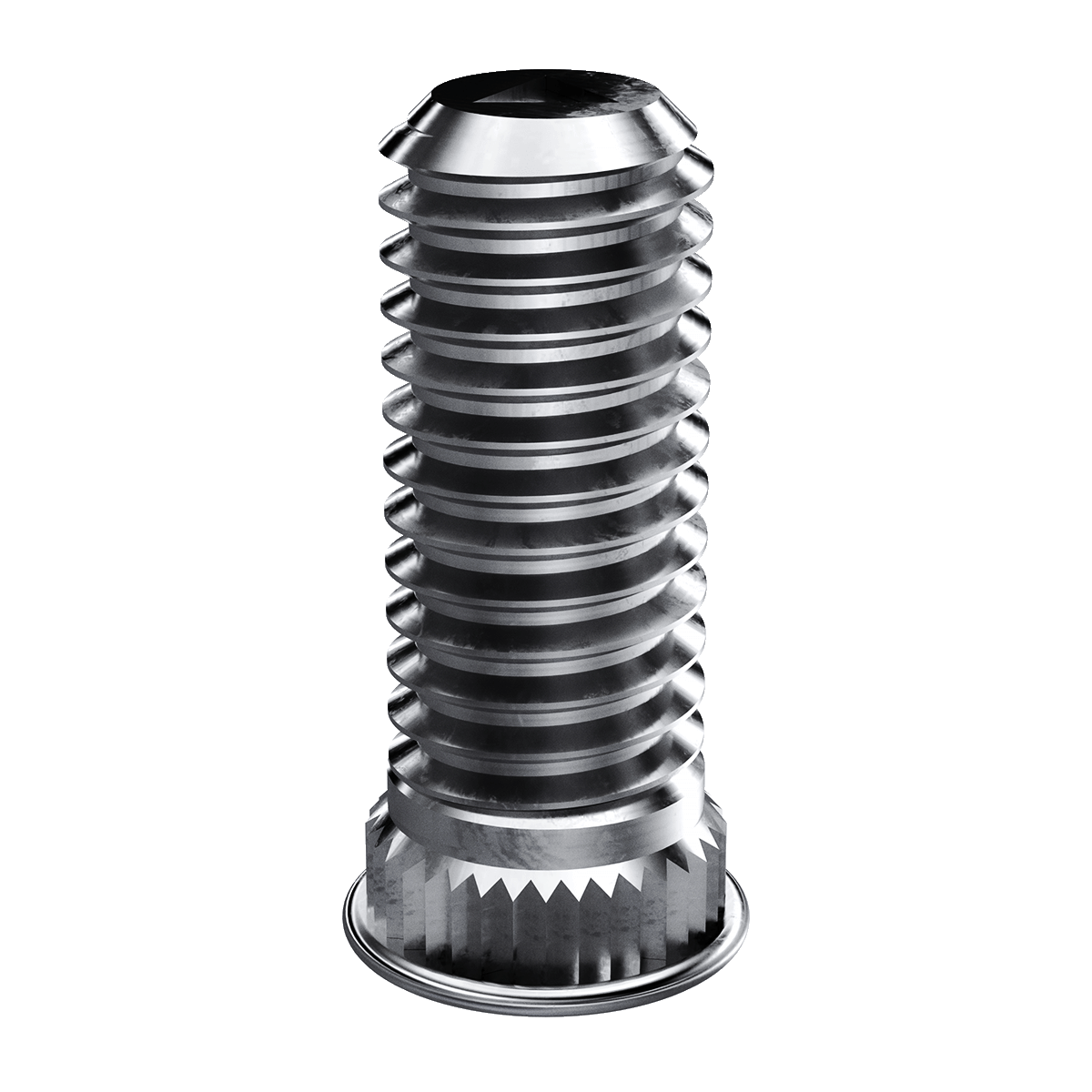

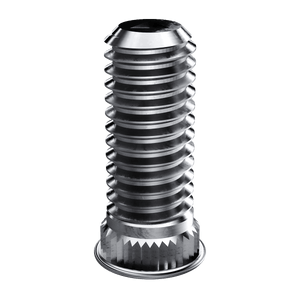

• MFG Part Number : CKFHM5-18
• Product Group: CKFH
• Material: Phosphor Bronze; CDA-510
• Finish: Electro Tin
• Thread Type: Metric
• Thread Size: M5x0.8
• Thread Code: M5
• Hole Diameter: 5 +0.08 -0.00
• Sheet Thickness: 1.53

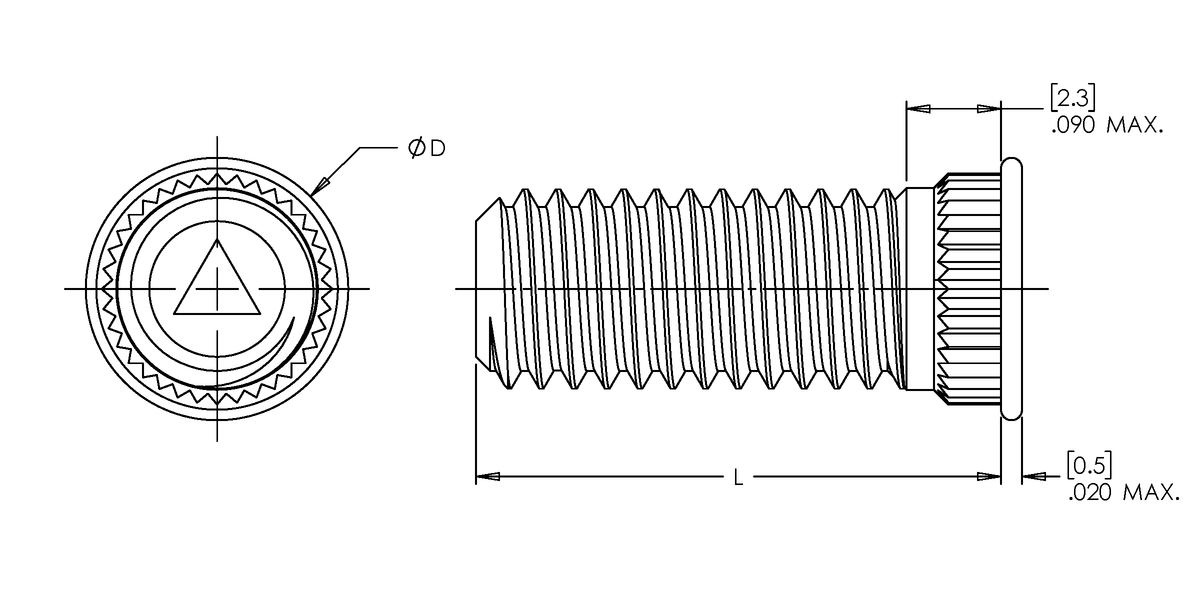

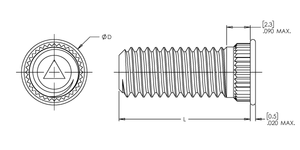

• Dim D: 6.60 ±0.25
• Dim L: 18.00 ±0.25
• Anvil Hole Dia: 5.10 +0.08
• CL to Edge Distance: 5.3
• Max Nut Tightening Torque: 2.10 N-m
• Max. Hole in attached parts: 5.8
• .060in Fiberglass Installation Force: 1.80 kN
• .060in Fiberglass Push Out: 400 N
• .060in Fiberglass Torque Out: 1.92 N-m
