Specifications :

• MFG Part Number : CKFH632-10
• Product Group: CKFH
• Material: Phosphor Bronze; CDA-510
• Finish: Electro Tin
• Thread Type: Imperial
• Thread Size: 6-32 UNC
• Thread Code: 632
• Hole Diameter: 0.14 +0.003 -0.00
• Sheet Thickness: 0.06

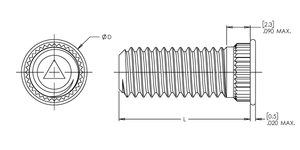

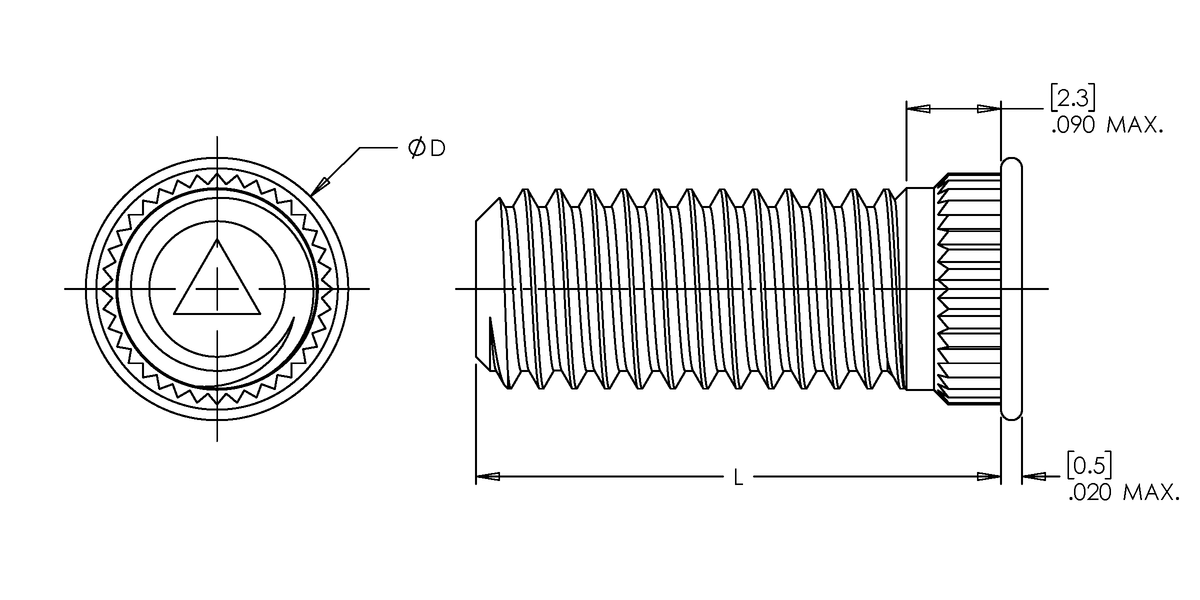

• Dim D: 0.200 ±0.010
• Dim L: 0.625 ±0.010
• Anvil Hole Dia: 0.140 +0.003
• CL to Edge Distance: 0.19
• Max Nut Tightening Torque: 8 in-lbs
• Max. Hole in attached parts: 0.17
• .060in Fiberglass Installation Force: 400 lbs.
• .060in Fiberglass Push Out: 70 lbs.
• .060in Fiberglass Torque Out: 11 in-lbs.
