Specifications :

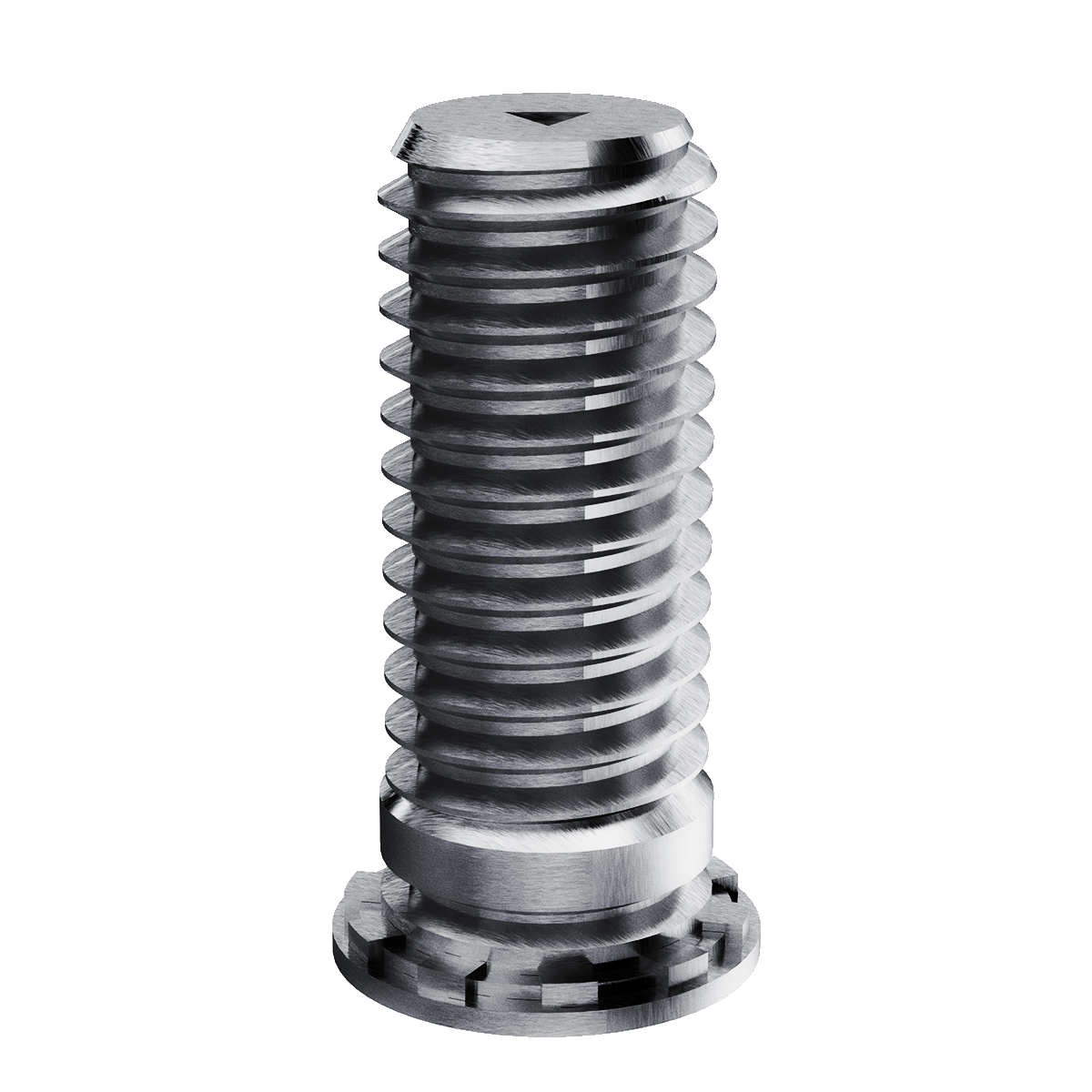

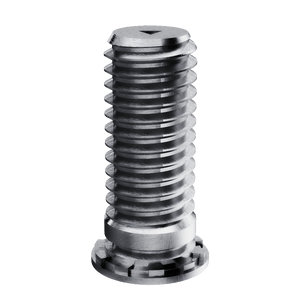

• MFG Part Number : CHTSM6-12
• Product Group: CHTS
• Material: Stainless Steel; 400 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M6x1.0
• Thread Code: M6
• Hole Diameter: 6.00 +0.08 -0.00
• Sheet Thickness: 1.6-3.1
• 304SS Sheet Hardness: 88 HRB

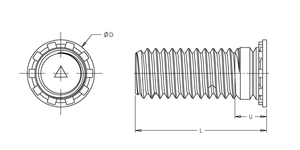

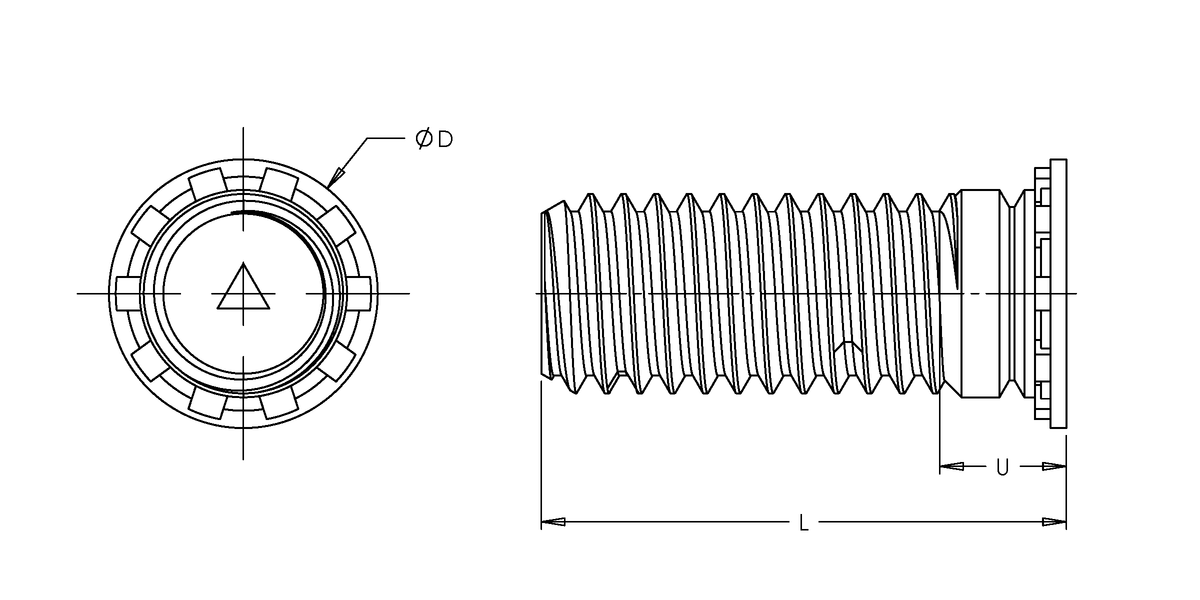

• Dim D: 8.2 ±0.4
• Dim L: 12.0 ±0.4
• Dim U Max.: 3
• CL to Edge Distance: 7.9
• 304SS Recommended Tightening Torque: 7.2 N-m
• Installation Sheet Thickness: 0.045 SS
• 304SS Installation Force: 58 kN
• 304SS Push Out: 4200 N
• 304SS Torque Out: 15.9 N-m
• 304SS Pull Through: 14900 N
