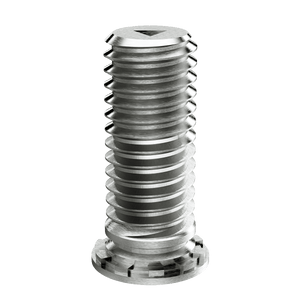

Self-Clinching Stud, For SS, A286 Stainless Steel, Passivated, Metric, M4x0.7 x 6, 100 Pack
Self-Clinching Stud, For SS, A286 Stainless Steel, Passivated, Metric, M4x0.7 x 6, 100 Pack
Self-Clinching Stud, For SS, A286 Stainless Steel, Passivated, Metric, M4x0.7 x 6, 100 Pack
Self-Clinching Stud, For SS, A286 Stainless Steel, Passivated, Metric, M4x0.7 x 6, 100 Pack

Self-Clinching Stud, For SS, A286 Stainless Steel, Passivated, Metric, M4x0.7 x 6, 100 Pack

Specifications :

  • MFG Part Number : CH2S-M4-6
  • Product Group: CH2S
  • Material: Stainless Steel; A286
  • Finish: Passivated
  • Thread Type: Metric
  • Thread Size: M4x0.7
  • Thread Code: M4
  • Hole Diameter: 4 +0.08 -0.00
  • Sheet Thickness: 1.0-2.4
  • 304SS Sheet Hardness: 86 HRB

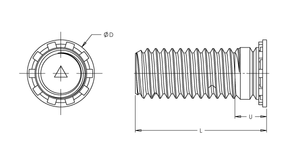

  • Dim D: 5.9 ±0.4
  • Dim L: 6.0 ±0.4
  • Dim U Max.: 2.4
  • CL to Edge Distance: 7.2
  • 304SS Recommended Tightening Torque: 2.9 N-m
  • 304SS Installation Force: 50 kN
  • 304SS Push Out: 3000 N
  • 304SS Torque Out: 3.9 N-m
  • 304SS Pull Through: 6000 N
