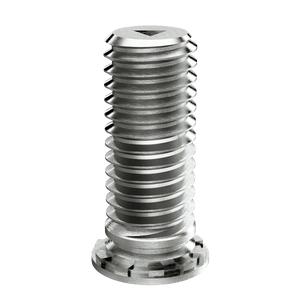

Self-Clinching Stud, For SS, A286 Stainless Steel, Passivated, Metric, M4x0.7 x 35, 100 Pack

Self-Clinching Stud, For SS, A286 Stainless Steel, Passivated, Metric, M4x0.7 x 35, 100 Pack

Self-Clinching Stud, For SS, A286 Stainless Steel, Passivated, Metric, M4x0.7 x 35, 100 Pack

Self-Clinching Stud, For SS, A286 Stainless Steel, Passivated, Metric, M4x0.7 x 35, 100 Pack

Self-Clinching Stud, For SS, A286 Stainless Steel, Passivated, Metric, M4x0.7 x 35, 100 Pack

Specifications :

MFG Part Number : CH2S-M4-35
Product Group: CH2S
Material: Stainless Steel; A286
Finish: Passivated
Thread Type: Metric
Thread Size: M4x0.7
Thread Code: M4
Hole Diameter: 4 +0.08 -0.00
Sheet Thickness: 1.0-2.4
304SS Sheet Hardness: 86 HRB

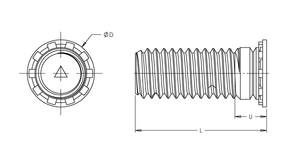

Dim D: 5.9 ±0.4
Dim L: 35.0 ±0.4
Dim U Max.: 2.4
CL to Edge Distance: 7.2
304SS Recommended Tightening Torque: 2.9 N-m
304SS Installation Force: 50 kN
304SS Push Out: 3000 N
304SS Torque Out: 3.9 N-m
304SS Pull Through: 6000 N
