Specifications :

• MFG Part Number : CFAS1024-1
• Product Group: CFAS
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Imperial
• Thread Size: 10-24 UNC
• Thread Code: 1024
• Hole Diameter: 0.406 +0.003 -0.00
• Sheet Thickness: 0.038

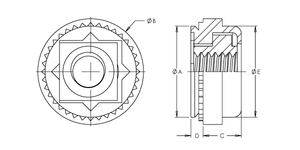

• Dim A Max.: 0.405
• Dim B: 0.470 ±0.015
• Dim C Max.: 0.17
• Dim D Max.: 0.038
• Dim E Max.: 0.405
• CL to Edge Distance: 0.36
• CRS Installation Force: 3500 lbs
• CRS Push Out: 400 lbs
• CRS Torque Out: 150 in-lbs
• AL 2024-T3 Installation Force: 3500 lbs
