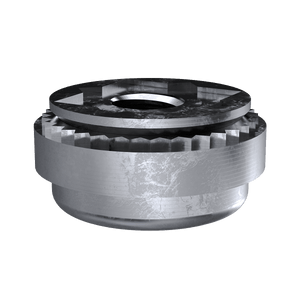

Self-Clinching Nut, Floating, 300 Series Stainless Steel, Passivated, 10-24 x 2, 100 Pack

Specifications :

  • MFG Part Number : CFAC1024-2
  • Product Group: CFAC
  • Material: Stainless Steel; 300 Series
  • Finish: Passivated
  • Thread Type: Imperial
  • Thread Size: 10-24 UNC
  • Thread Code: 1024
  • Hole Diameter: 0.406 +0.003 -0.00
  • Sheet Thickness: 0.054

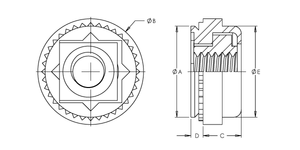

  • Dim A Max.: 0.405
  • Dim B: 0.470 ±0.015
  • Dim C Max.: 0.17
  • Dim D Max.: 0.054
  • Dim E Max.: 0.405
  • CL to Edge Distance: 0.36
  • CRS Push Out: 450 lbs
  • CRS Torque Out: 200 in-lbs
  • AL 2024-T3 Installation Force: 3500 lbs
