Specifications :

• MFG Part Number : CFACM4-1
• Product Group: CFAC
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M4x0.7
• Thread Code: M4
• Hole Diameter: 9.35 +0.08 -0.00
• Sheet Thickness: 0.97

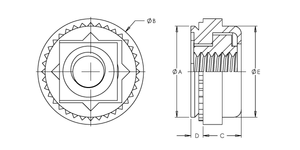

• Dim A Max.: 9.33
• Dim B: 11.18 ±0.38
• Dim C Max.: 3.31
• Dim D Max.: 0.97
• Dim E Max.: 9.28
• CL to Edge Distance: 8.64
• CRS Installation Force: 13.3 kN
• CRS Push Out: 1334 N
• CRS Torque Out: 16.9 N-m
• 5052 H34 Aluminum Installation Force: 8.9 kN
• 5052 H34 Aluminum Push Out: 1112 N
• 5052 H34 Aluminum Torque Out: 15.8 N-m
• AL 2024-T3 Installation Force: 13.3 kN
• AL 2024-T3 Push Out Force: 1067 N
