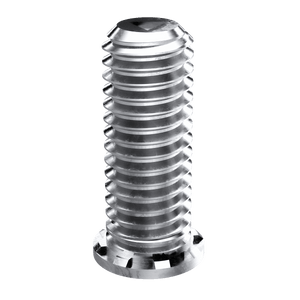

Self-Clinching Stud, Non-Flush Head, Steel, Zinc, 8-32 x 0.500, 100 Pack
Self-Clinching Stud, Non-Flush Head, Steel, Zinc, 8-32 x 0.500, 100 Pack
Self-Clinching Stud, Non-Flush Head, Steel, Zinc, 8-32 x 0.500, 100 Pack
Self-Clinching Stud, Non-Flush Head, Steel, Zinc, 8-32 x 0.500, 100 Pack

Self-Clinching Stud, Non-Flush Head, Steel, Zinc, 8-32 x 0.500, 100 Pack

$99,999.00 USD

Specifications :

  • MFG Part Number : TCH832-8
  • Product Group: TCH
  • Material: Steel; Heat Treated
  • Finish: Zinc Clear
  • Thread Type: Imperial
  • Thread Size: 8-32 UNC
  • Thread Code: 832
  • Hole Diameter: 0.163 +0.003 -0.000
  • Sheet Thickness: 0.02
  • .023in Steel Sheet Hardness: 52 HRB

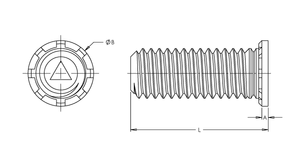

  • Dim A Max.: 0.025
  • Dim B: 0.234 ±0.015
  • Dim L: 0.500 ±0.015
  • CL to Edge Distance: 0.281
  • .023in Steel Installation Force: 3100 lbs
  • .023in Steel Push Out: 120 lbs
  • .023in Steel Torque Out: 26 in-lbs
  • .020in Aluminum Sheet Hardness: 28 HRB
  • .020in Aluminum Installation Force: 2100 lbs
  • .020in Aluminum Push Out: 60 lbs
  • .020in Aluminum Torque Out: 10 in-lbs
