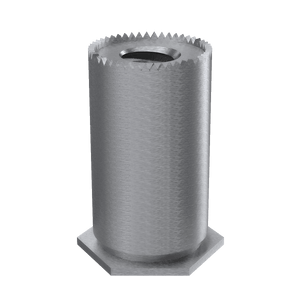

Self-Clinching Standoff, Self-Grounding, 300 Series Stainless Steel, Passivated, 4-40 x 0.125, 100 Pack
Self-Clinching Standoff, Self-Grounding, 300 Series Stainless Steel, Passivated, 4-40 x 0.125, 100 Pack
Self-Clinching Standoff, Self-Grounding, 300 Series Stainless Steel, Passivated, 4-40 x 0.125, 100 Pack
Self-Clinching Standoff, Self-Grounding, 300 Series Stainless Steel, Passivated, 4-40 x 0.125, 100 Pack

Self-Clinching Standoff, Self-Grounding, 300 Series Stainless Steel, Passivated, 4-40 x 0.125, 100 Pack

Specifications :

  • MFG Part Number : CFSOSG6440-4
  • Product Group: CFSOSG
  • Material: Stainless Steel; 300 Series
  • Finish: Passivated
  • Thread Type: Imperial
  • Thread Size: 4-40 UNC
  • Thread Code: 440
  • Hole Diameter: 0.213 +0.003 -0.000
  • Sheet Thickness: 0.04

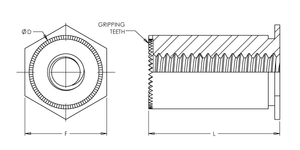

  • Dim D: 0.212 +0.000 -0.005
  • Dim F: 0.250 ±0.005
  • Dim L: 0.125 +0.010 -0.000
  • CL to Edge Distance: 0.27
  • 5052 H34 Aluminum Installation Force: 1700 lbs
  • 5052 H34 Aluminum Push Out: 300 lbs
  • 5052 H34 Aluminum Torque Out: 25 in-lbs
