Self-Clinching Standoff, Through Threaded, 300 Series Stainless Steel Passivated, 4-40 x 0.437, 100 Pack

Specifications :

  • MFG Part Number : CFSOS440-14
  • Product Group: CFSOS
  • Material: Stainless Steel; 300 Series
  • Finish: Passivated
  • Thread Type: Imperial
  • Thread Size: 4-40 UNC
  • Thread Code: 440
  • Hole Diameter: 0.166 +0.003 -0.000
  • Sheet Thickness: 0.04

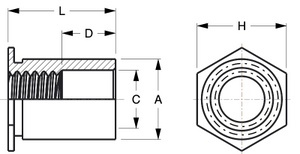

  • Dim A: 0.165 +0.000 -0.005
  • Dim C: 0.125 ±0.005
  • Dim D: 0.187 ±0.010
  • Dim H Nom.: 0.187
  • Dim L: 0.437 +0.002 -0.005
  • CL to Edge Distance: 0.23
  • Max Nut Tightening Torque: 3.80 in- lbs
  • .060in CRS Installation Force: 2200 lbs
  • .060in CRS Push Out: 225 lbs
  • .060in CRS Torque Out: 19 in- lbs
  • .060in CRS Pull Through: 264 lbs
  • .060in 5052 H34 Aluminum Installation Force: 1100 lbs
  • .060in 5052 H34 Aluminum Push Out: 160 lbs
  • .060in 5052 H34 Aluminum Torque Out: 11 in- lbs
  • .060in 5052 H34 Aluminum Pull Through: 224 lbs
