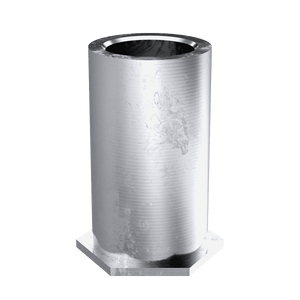

Self-Clinching Standoff, Through Threaded, 300 Series Stainless Steel Passivated, Metric, M3x0.5 x 12, Hole Dia.: 5.4, 100 Pack

Specifications :

  • MFG Part Number : CFSOS3.5M3-12
  • Product Group: CFSOS
  • Material: Stainless Steel; 300 Series
  • Finish: Passivated
  • Thread Type: Metric
  • Thread Size: M3x0.5
  • Thread Code: M3
  • Sheet Thickness: 1

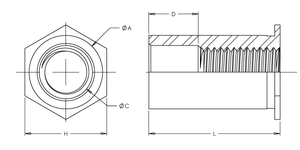

  • Dim A: 5.39 +0.00 -0.13
  • Dim C: 3.20 ±0.13
  • Dim D: 4.00 ±0.25
  • Dim H Nom.: 6.4
  • Dim L: 12.00 +0.05 -0.13
  • CL to Edge Distance: 6.8
  • Max Nut Tightening Torque: 0.44 N-m
  • 1.500mm CRS Installation Force: 14.7 kN
  • 1.500mm CRS Push Out: 1860 N
  • 1.500mm CRS Torque Out: 3.95 N-m
  • 1.500mm CRS Pull Through: 1352 N
  • 1.500mm 5052 H34 Aluminum Intallation Force: 7.6 kN
  • 1.500mm 5052 H34 Aluminum Push Out: 1330 N
  • 1.500mm 5052 H34 Aluminum Torque Out: 2.82 N-m
  • 1.500mm 5052 H34 Aluminum Pull Through: 1100 N
