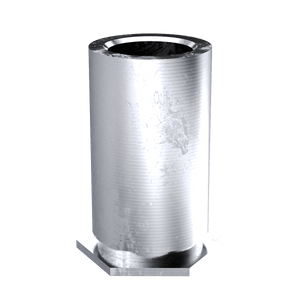

Self-Clinching Standoff, Through Unthreaded, 7075-T6 Aluminum, 0.194 x 0.562, 100 Pack

Specifications :

  • MFG Part Number : CFSOA8194-18
  • Product Group: CFSOA
  • Material: Aluminum; 7076-T6
  • Finish: None
  • Thread Type: Imperial
  • Thread Size: Unthreaded
  • Hole Diameter: 0.281 +0.003 -0.000
  • Sheet Thickness: 0.05

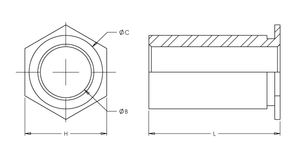

  • Dim B: 0.194 +0.004 -0.003
  • Dim C: 0.280 +0.000 -0.005
  • Dim H Nom.: 0.312
  • Dim L: 0.562 +0.002 -0.005
  • CL to Edge Distance: 0.31
