Specifications :

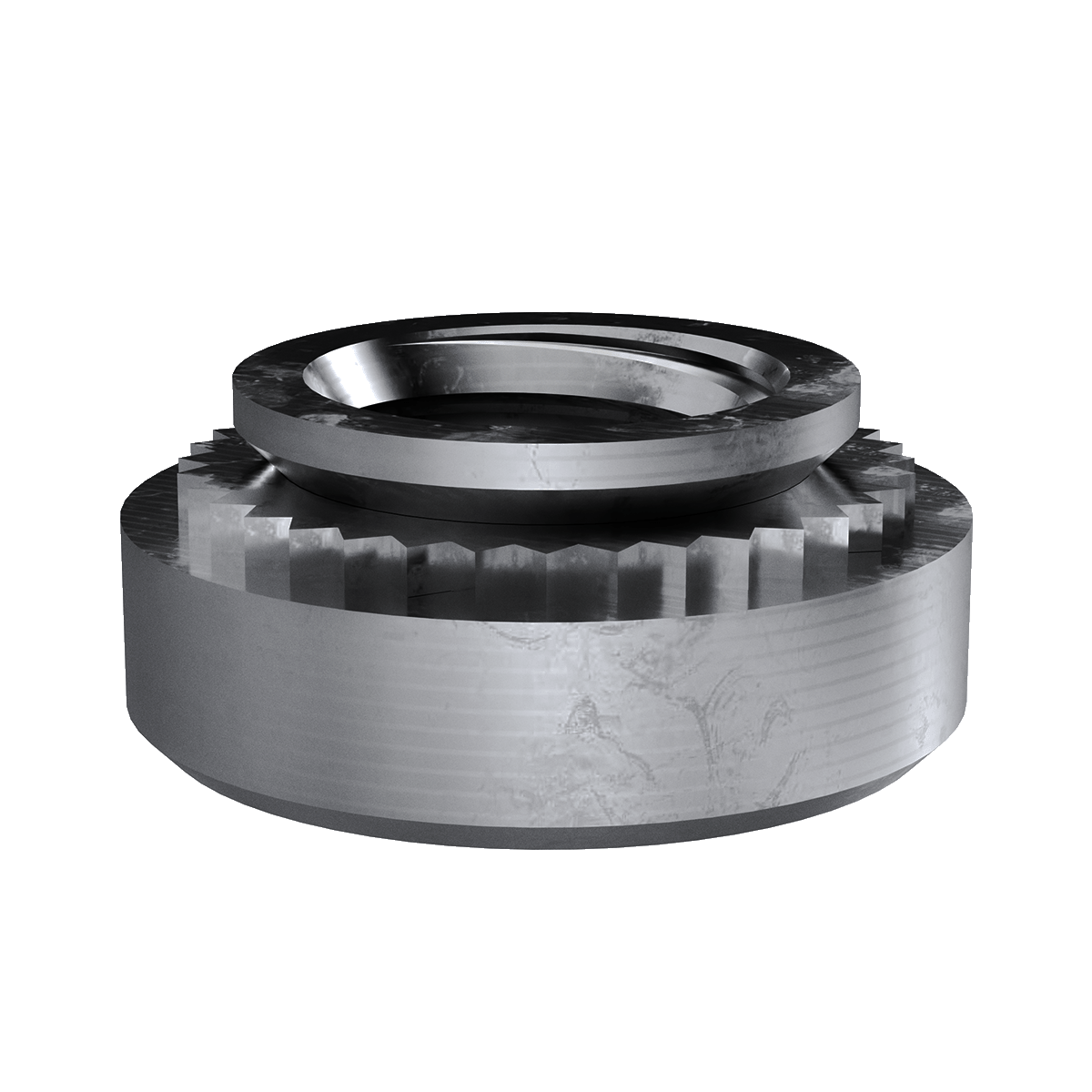

• MFG Part Number : CM8-1
• Product Group: C
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Metric
• Thread Size: M8x1.25
• Thread Code: M8
• Hole Diameter: 10.50 +0.08 -0.00
• Sheet Thickness: 1.4
• Dim A Max.: 10.47
• Dim B: 12.70 ±0.25
• Dim C: 5.47 ±0.25
• Dim D Max.: 1.38
• CL to Edge Distance: 9.7
• CRS Installation Force: 27-36 kN
• CRS Push Out: 1870 N
• CRS Torque Out: 18.70 N-m
• 5052 H34 Aluminum Installation Force: 11.2-15.6 kN
• 5052 H34 Aluminum Push Out: 845 N
• 5052 H34 Aluminum Torque Out: 5.70 N-m
