Specifications :

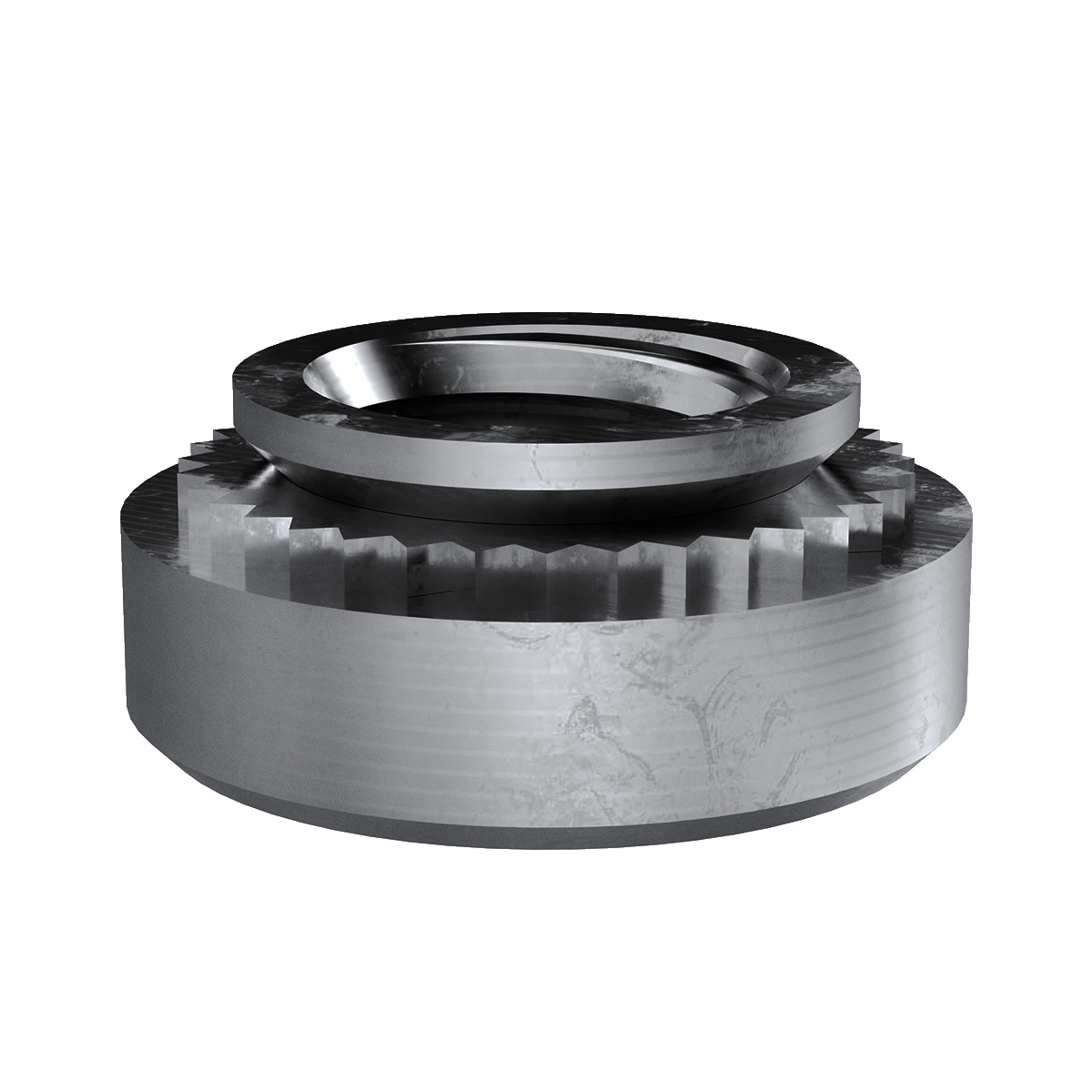

• MFG Part Number : CM3.5-0
• Product Group: C
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Metric
• Thread Size: M3.5x0.5
• Thread Code: M3.5
• Hole Diameter: 4.75 +0.08 -0.00
• Sheet Thickness: 0.8
• Dim A Max.: 4.73
• Dim B: 7.11 ±0.25
• Dim C: 1.50 ±0.25
• Dim D Max.: 0.77
• CL to Edge Distance: 5.6
• CRS Installation Force: 13.4-26.7 kN
• CRS Push Out: 480 N
• CRS Torque Out: 1.80 N-m
• 5052 H34 Aluminum Installation Force: 6.7-8.9 kN
• 5052 H34 Aluminum Push Out: 750 N
• 5052 H34 Aluminum Torque Out: 1.47 N-m
