Specifications :

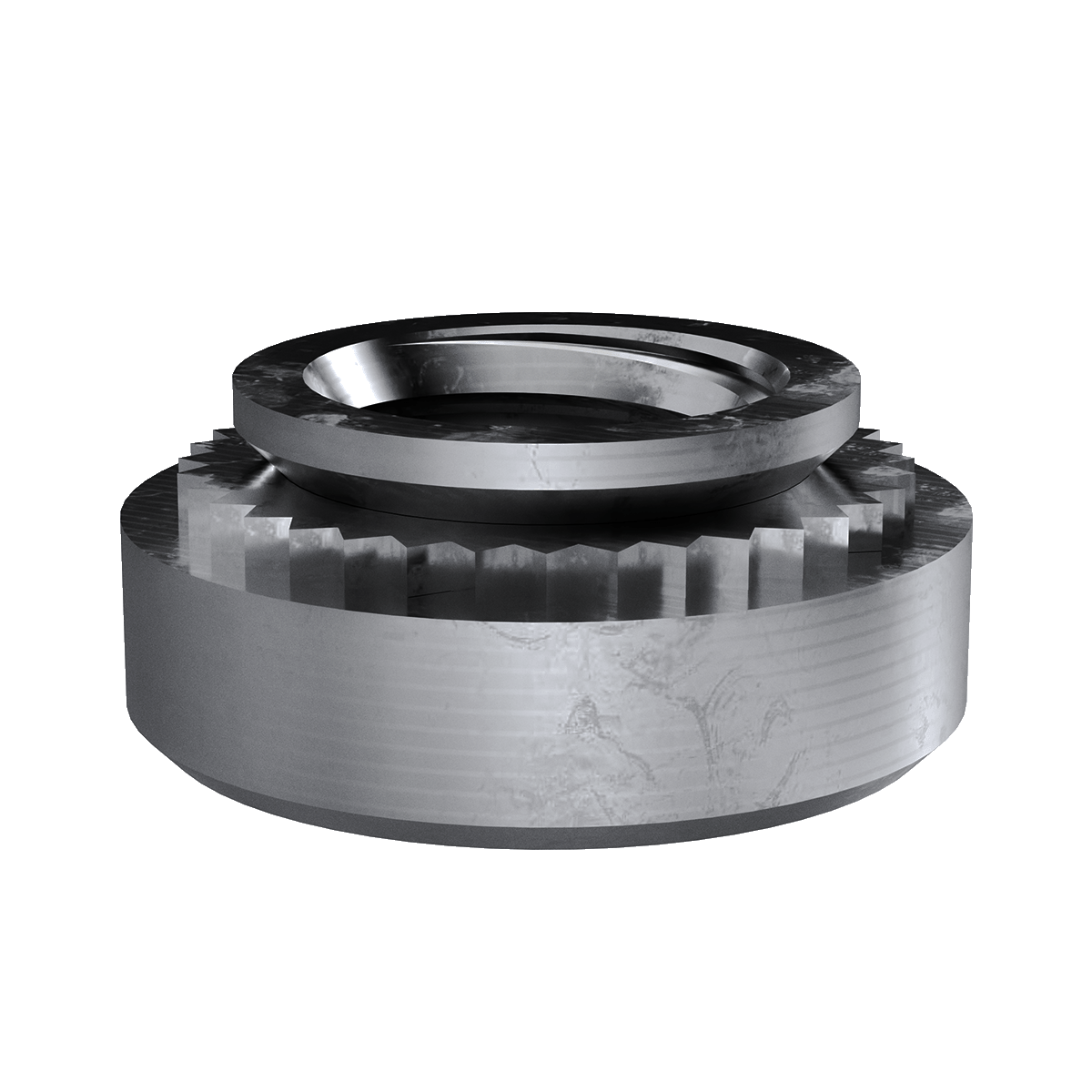

• MFG Part Number : CM12-2
• Product Group: C
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Metric
• Thread Size: M12x1.75
• Thread Code: M12
• Hole Diameter: 17.00 +0.08 -0.00
• Sheet Thickness: 6.4
• Dim A Max.: 16.95
• Dim B: 20.57 ±0.25
• Dim C: 8.50 ±0.25
• Dim D Max.: 6
• CL to Edge Distance: 16.0
• CRS Installation Force: 44-67 kN
• CRS Push Out: 4670 N
• CRS Torque Out: 83.1 N-m
• 5052 H34 Aluminum Installation Force: 15.6 kN
• 5052 H34 Aluminum Push Out: 1070 N
• 5052 H34 Aluminum Torque Out: 9.80 N-m
