Specifications :

• MFG Part Number : CPFC2M5-50
• Product Group: CPFC2
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M5x0.8
• Thread Code: M5
• Hole Diameter: 8.74 +0.08 -0.00
• Sheet Thickness: 1.53

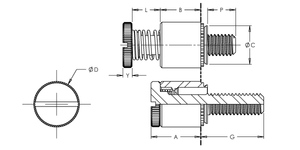

• Dim A Max.: 11.47
• Dim B: 9.30 ±0.25
• Dim C Max.: 8.72
• Dim D: 10.31 +0.4 -0.25
• Dim G: 7.9 ±0.4
• Dim L: 6.4 ±0.4
• Dim P: 0.0 ±0.4
• Dim Y: 2.08 ±0.13
• CL to Edge Distance: 8.63
• CRS Installation Force: 17.8 kN
• CRS Push Out: 2224 N
• 5052 H34 Aluminum Installation Force: 13.3 kN
• 5052 H34 Aluminum Push Out: 1779 N
