Specifications :

• MFG Part Number : PSS-M3.5-0
• Product Group: PSS
• Material: Aluminum Knob; Steel Base; Stainless Screw
• Thread Type: Metric
• Thread Size: M3.5x0.5
• Thread Code: M3.5
• Smooth Head
• Hole Diameter: 6.35 +0.08 -0.00
• Sheet Thickness: 0.92

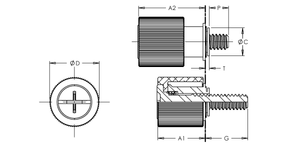

• Dim A1 Nom.: 11.43
• Dim A2: 16.26
• Dim C Max.: 6.33
• Dim D: 11.43 ±0.28
• Dim G: 5.84 ±0.64
• Dim P: 0.00 ±0.64
• Dim T Max.: 0.92
• CL to Edge Distance: 7.37
• CRS Installation Force: 11.1 kN
• CRS Push Out: 645 N
• 5052 H34 Aluminum Installation Force: 6.7 kN
• 5052 H34 Aluminum Push Out: 355 N
