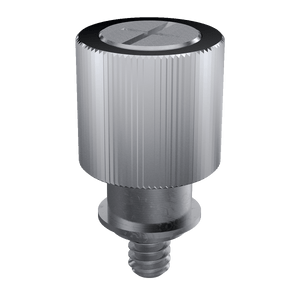

Self-Clinching Collar Base Panel Fastener, Smooth Head, Aluminum Knob, Steel Base, Stainless Screw, 1/4-20 x 0, 50 Pack

Specifications :

  • MFG Part Number : PSS-420-0
  • Product Group: PSS
  • Material: Aluminum Knob; Steel Base; Stainless Screw
  • Thread Type: Imperial
  • Thread Size: 1/4-20 UNC
  • Thread Code: 420
  • Smooth Head
  • Hole Diameter: 0.375 +0.003 -0.000
  • Sheet Thickness: 0.036

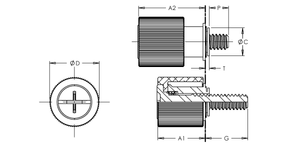

  • Dim A1 Nom.: 0.53
  • Dim A2: 0.79
  • Dim C Max.: 0.374
  • Dim D: 0.575 ±0.010
  • Dim G: 0.290 ±0.025
  • Dim P: 0.000 ±0.025
  • Dim T Max.: 0.036
  • CL to Edge Distance: 0.46
  • CRS Installation Force: 5000 lbs
  • CRS Push Out: 195 lbs
  • 5052 H34 Aluminum Installation Force: 3500 lbs
  • 5052 H34 Aluminum Push Out: 105 lbs
