Specifications :

• MFG Part Number : CFKSSB156-8
• Product Group: CFKSSB
• Material: Brass; CDA-360
• Finish: None
• Thread Type: Imperial
• Thread Size: Unthreaded
• Hole Diameter: 0.213 +0.003 -0.000
• Sheet Thickness: 0.05
• PCB Hardness HRB: 65 HRB

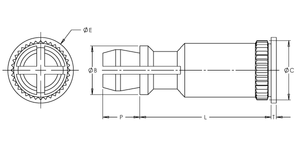

• Dim B: 0.188 ±0.005
• Dim C: 0.226 ±0.003
• Dim E: 0.250 ±0.005
• Dim L: 0.250 ±0.005
• Dim P: 0.141 ±0.005
• Dim T: 0.020 ±0.005
• CL to Edge Distance: 0.22
• .060in FR-4 Fiberglass Installation Force: 500 lbs.
• .060in FR-4 Fiberglass Push Out: 110 lbs.
