Specifications :

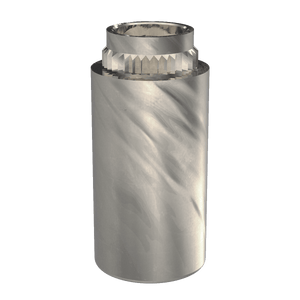

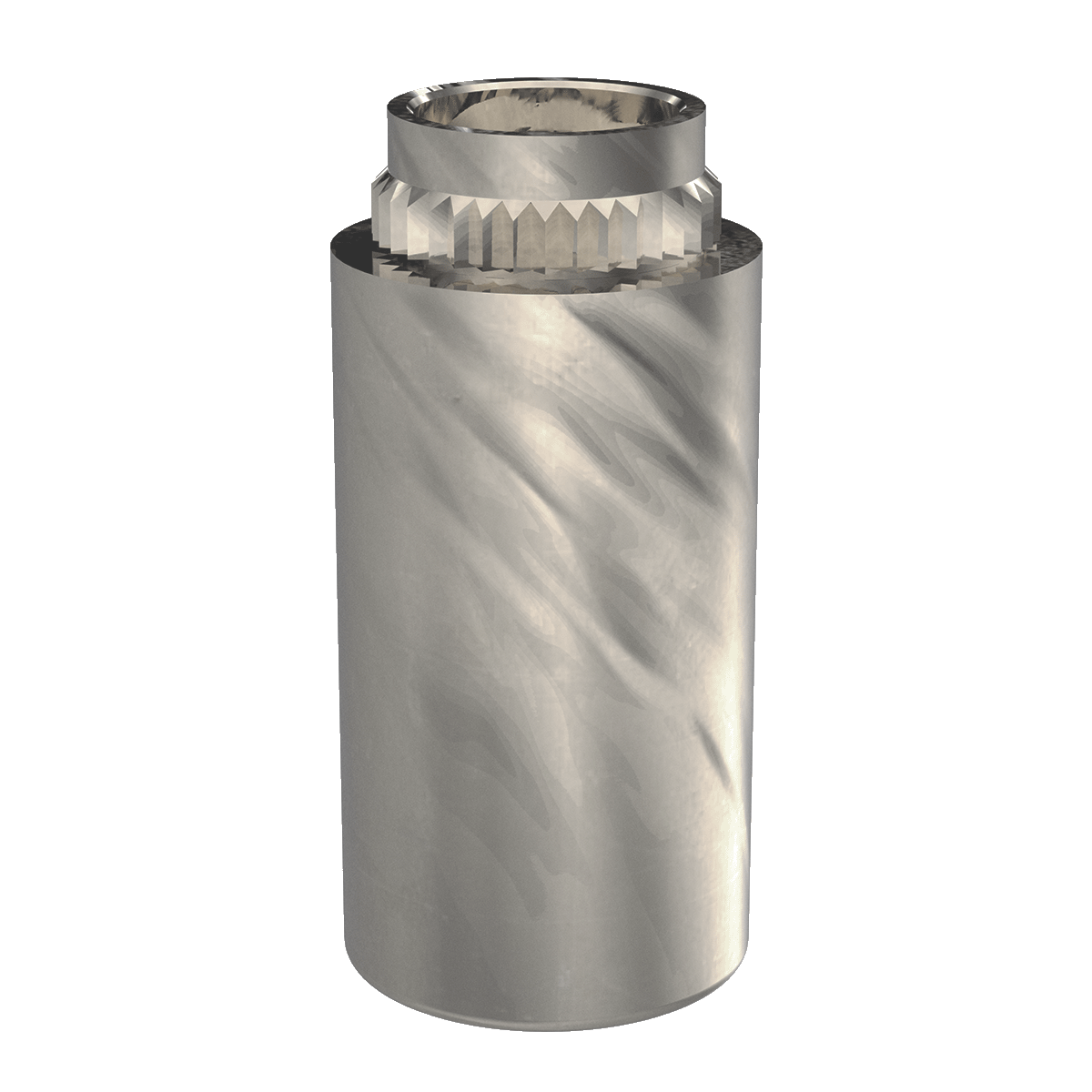

• MFG Part Number : CKFB3M4-16
• Product Group: CKFB3
• Material: Brass; CDA-360
• Finish: Electro Tin
• Thread Type: Metric
• Thread Size: M4x0.7
• Thread Code: M4
• Hole Diameter: 6.40 +0.13 -0.03
• Sheet Thickness: 1.65

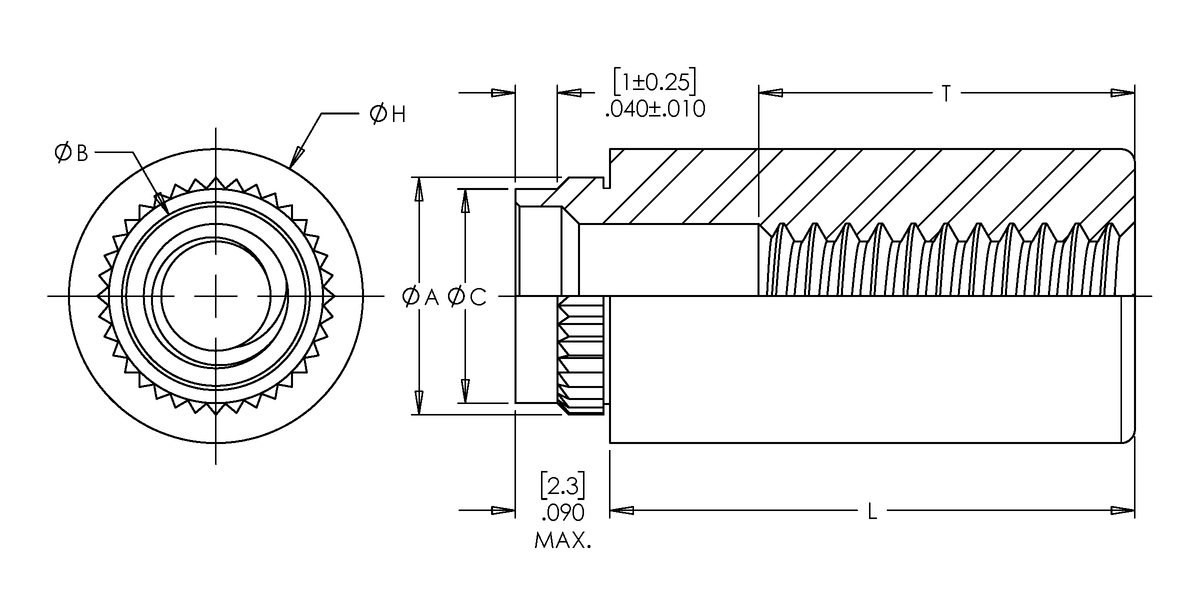

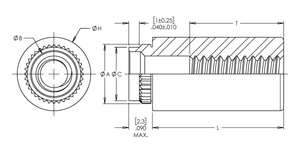

• Dim A: 6.68 ±0.08
• Dim B: 5.23 ±0.08
• Dim C Max.: 6.33
• Dim H: 8.74 ±0.13
• Dim L: 16.00 ±0.13
• Dim T: 9.5 ±0.4
• CL to Edge Distance: 6.36
• .060in Fiberglass Installation Force: 6.0 kN
• .060in Fiberglass Push Out: 680 N
• .060in Fiberglass Torque Out: 3.20 N-m
