Specifications :

• MFG Part Number : CKFB3M3-6
• Product Group: CKFB3
• Material: Brass; CDA-360
• Finish: Electro Tin
• Thread Type: Metric
• Thread Size: M3x0.5
• Thread Code: M3
• Hole Diameter: 4.22 +0.08 -0.00
• Sheet Thickness: 1.27

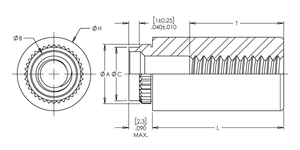

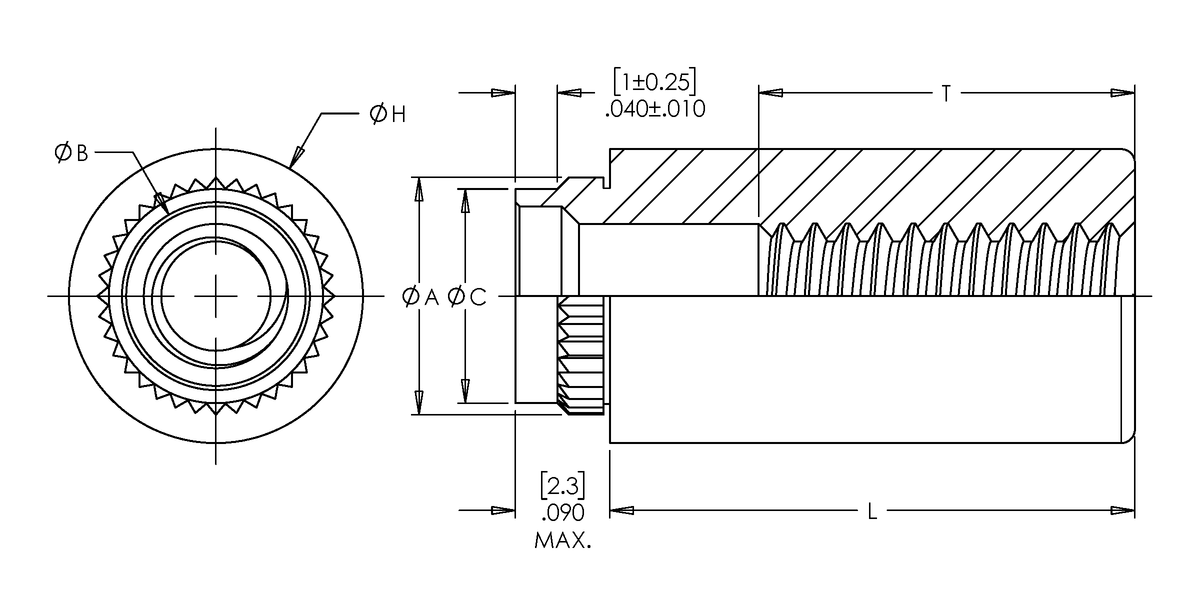

• Dim A: 4.55 ±0.08
• Dim B: 3.23 ±0.08
• Dim C Max.: 4.2
• Dim H: 5.56 ±0.13
• Dim L: 6.00 ±0.13
• Dim T: FULL
• CL to Edge Distance: 4.33
• .060in Fiberglass Installation Force: 4.4 kN
• .060in Fiberglass Push Out: 560 N
• .060in Fiberglass Torque Out: 2.03 N-m
