Specifications :

• MFG Part Number : HCH1024-16
• Product Group: HCH
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Imperial
• Thread Size: 10-24 UNC
• Thread Code: 1024
• Hole Diameter: 0.190 +0.005 -0.000
• Sheet Thickness: 0.05
• .060in CRS Sheet Hardness HRB: 65 HRB

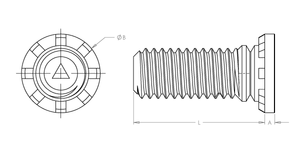

• Dim A Max.: 0.04
• Dim B: 0.300 ±0.010
• Dim L: 1.000 ±0.015
• CL to Edge Distance: 0.415
• .060in CRS Max Tightening Torque: 3.25 ft-lbs
• Max. Hole in attached parts: 0.252
• .060in CRS Installation Force: 6000 lbs
• .060in CRS Push Out: 375 lbs
• .060in CRS Torque Out: 5 ft-lbs
