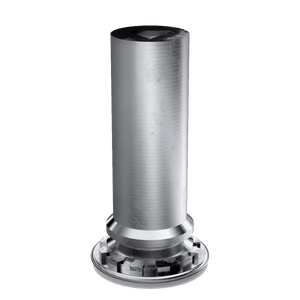

Self-Clinching Pin, 300 Series Stainless Steel, Passivated, 0.084 x 0.625, 100 Pack

Self-Clinching Pin, 300 Series Stainless Steel, Passivated, 0.084 x 0.625, 100 Pack

Self-Clinching Pin, 300 Series Stainless Steel, Passivated, 0.084 x 0.625, 100 Pack

Specifications :

MFG Part Number : CHS084-10
Product Group: CHS
Material: Stainless Steel; 300 Series
Finish: Passivated
Thread Type: Imperial
Thread Size: Unthreaded
Hole Diameter: 0.099 +0.003 -0.000
Sheet Thickness: 0.04

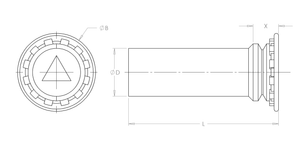

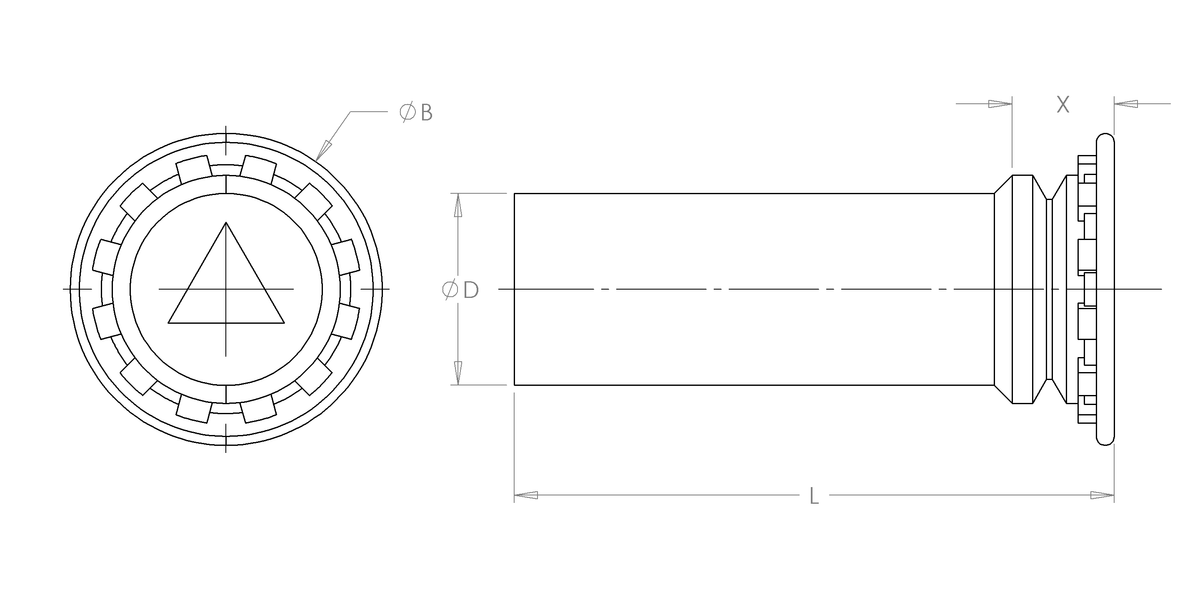

Dim B: 0.160 ±0.015
Dim D: 0.084 ±0.002
Dim L: 0.625 ±0.015
X Max.: 0.085
CL to Edge Distance: 0.22
Data Sheet
Installation Instructions
