Specifications :

• MFG Part Number : CFEX1032
• Product Group: CFEX
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 10-32 UNF
• Thread Code: 1032
• Hole Diameter: 0.290 +0.003 -0.00
• Sheet Thickness: 0.059

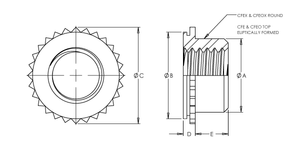

• Dim A Max.: 0.245
• Dim B Max.: 0.289
• Dim C: 0.322 ±0.005
• Dim D Max.: 0.06
• Dim E: 0.110 +0.015 -0.000
• CL to Edge Distance: 0.2
• Installation Sheet Thickness: 0.060 in
• CRS Installation Force: 2500 lbs
• CRS Push Out: 360 lbs
• CRS Torque Out: 48 in-lbs
• 5052 H34 Aluminum Installation Force: 1500 lbs
• 5052 H34 Aluminum Push Out: 255 lbs
• 5052 H34 Aluminum Torque Out: 48 in-lbs
