Self-Clinching Nut, Self-Locking Thread, Stainless Steel, Black Dry Film Lubricant, 4-40 x 0.06, 100 Pack
Self-Clinching Nut, Self-Locking Thread, Stainless Steel, Black Dry Film Lubricant, 4-40 x 0.06, 100 Pack
Self-Clinching Nut, Self-Locking Thread, Stainless Steel, Black Dry Film Lubricant, 4-40 x 0.06, 100 Pack
Self-Clinching Nut, Self-Locking Thread, Stainless Steel, Black Dry Film Lubricant, 4-40 x 0.06, 100 Pack

Self-Clinching Nut, Self-Locking Thread, Stainless Steel, Black Dry Film Lubricant, 4-40 x 0.06, 100 Pack

$99,999.00 USD

Specifications :

  • MFG Part Number : CFE440ML
  • Product Group: CFE
  • Material: Stainless Steel; 300 Series
  • Finish: Black Dry Film Lubricant
  • Thread Type: Imperial
  • Thread Size: 4-40 UNC
  • Thread Code: 440
  • Hole Diameter: 0.172 +0.003 -0.00
  • Sheet Thickness: 0.059

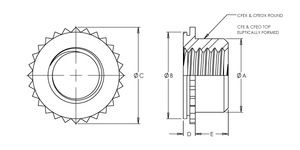

  • Dim A Max.: 0.145
  • Dim B Max.: 0.171
  • Dim C: 0.192 ±0.005
  • Dim D Max.: 0.06
  • Dim E: 0.065 +0.015 -0.000
  • CL to Edge Distance: 0.14
  • Installation Sheet Thickness: 0.060 in
  • CRS Installation Force: 1500 lbs
  • CRS Push Out: 210 lbs
  • CRS Torque Out: 12 in-lbs
  • 5052 H34 Aluminum Installation Force: 900 lbs
  • 5052 H34 Aluminum Push Out: 135 lbs
  • 5052 H34 Aluminum Torque Out: 12 in-lbs
