Specifications :

• MFG Part Number : CS632-2
• Product Group: CS
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 6-32 UNC
• Thread Code: 632
• Hole Diameter: 0.1875 +0.003 -0.00
• Sheet Thickness: 0.056

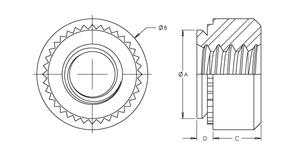

• Dim A Max.: 0.187
• Dim B: 0.280 ±0.010
• Dim C: 0.070 ±0.010
• Dim D Max.: 0.054
• CL to Edge Distance: 0.22
• CRS Installation Force: 3000-6000 lbs
• CRS Push Out: 275 lbs
• CRS Torque Out: 28 in-lbs
• 5052 H34 Aluminum Installation Force: 2500-3000 lbs
• 5052 H34 Aluminum Push Out: 190 lbs
• 5052 H34 Aluminum Torque Out: 22 in-lbs
