Specifications :

• MFG Part Number : CFC-2-M3-12
• Product Group: CFC-2
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M3x0.5
• Thread Code: M3
• Hole Diameter: 4.37 +0.08 -0.00
• Sheet Thickness: 2.4

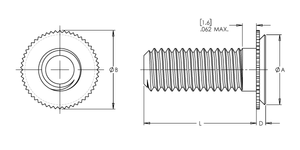

• Dim A Max.: 4.35
• Dim B: 5.21 ±0.25
• Dim D Max.: 1.8
• Dim L: 12.0 ±0.4
• CL to Edge Distance: 4.0
• Depth of Blind Hole: 1.91
• Max Nut Tightening Torque: 0.55 N-m
• CRS Installation Force: 8.9 kN
• CRS Pull Out: 1065 N
• 5052 H34 Aluminum Installation Force: 6.7 kN
• 5052 H34 Aluminum Pull Out: 890 N
