Specifications :

• MFG Part Number : CFBS420-2
• Product Group: CFBS
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 1/4-20 UNC
• Thread Code: 420
• Hole Diameter: 0.344 +0.003 -0.00
• Sheet Thickness: 0.09

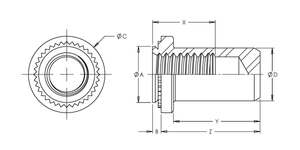

• Dim A Max. Shank Dia.: 0.343
• Dim B Max.: 0.087
• Dim C: 0.430 ±0.010
• Dim D Max. Barrel Dia.: 0.305
• X Min. Depth Full Thread: 0.31
• Dim Y Max.: 0.5
• Dim Z: 0.560 ±0.010
• CL to Edge Distance: 0.34
• CRS Installation Force: 6000 lbs
• CRS Push Out: 400 lbs
• CRS Torque Out: 105 in-lbs
• 5052 H34 Aluminum Installation Force: 4000 lbs
• 5052 H34 Aluminum Push Out: 315 lbs
• 5052 H34 Aluminum Torque Out: 90 in-lbs
