Specifications :

• MFG Part Number : CFASM6-2
• Product Group: CFAS
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Metric
• Thread Size: M6x1.0
• Thread Code: M6
• Hole Diameter: 13.08 +0.08 -0.00
• Sheet Thickness: 1.38

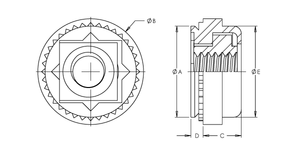

• Dim A Max.: 13.06
• Dim B: 15.24 ±0.38
• Dim C Max.: 5.34
• Dim D Max.: 1.37
• Dim E Max.: 12.96
• CL to Edge Distance: 10.67
• 5052 H34 Aluminum Push Out: 1779 N
• 5052 H34 Aluminum Torque Out: 36.7 N-m
• AL 2024-T3 Installation Force: 22.2 kN
• AL 2024-T3 Push Out Force: 1334 N
