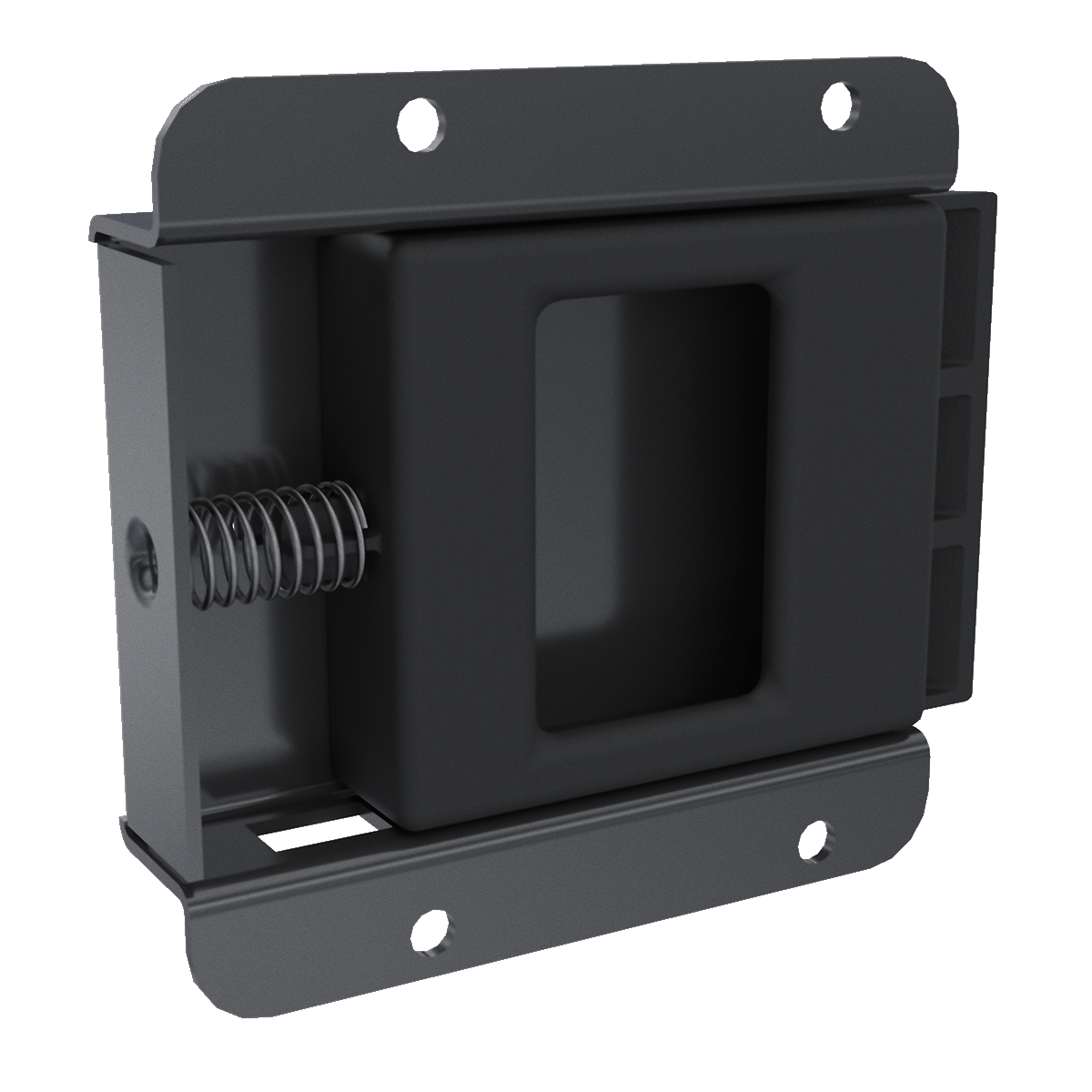

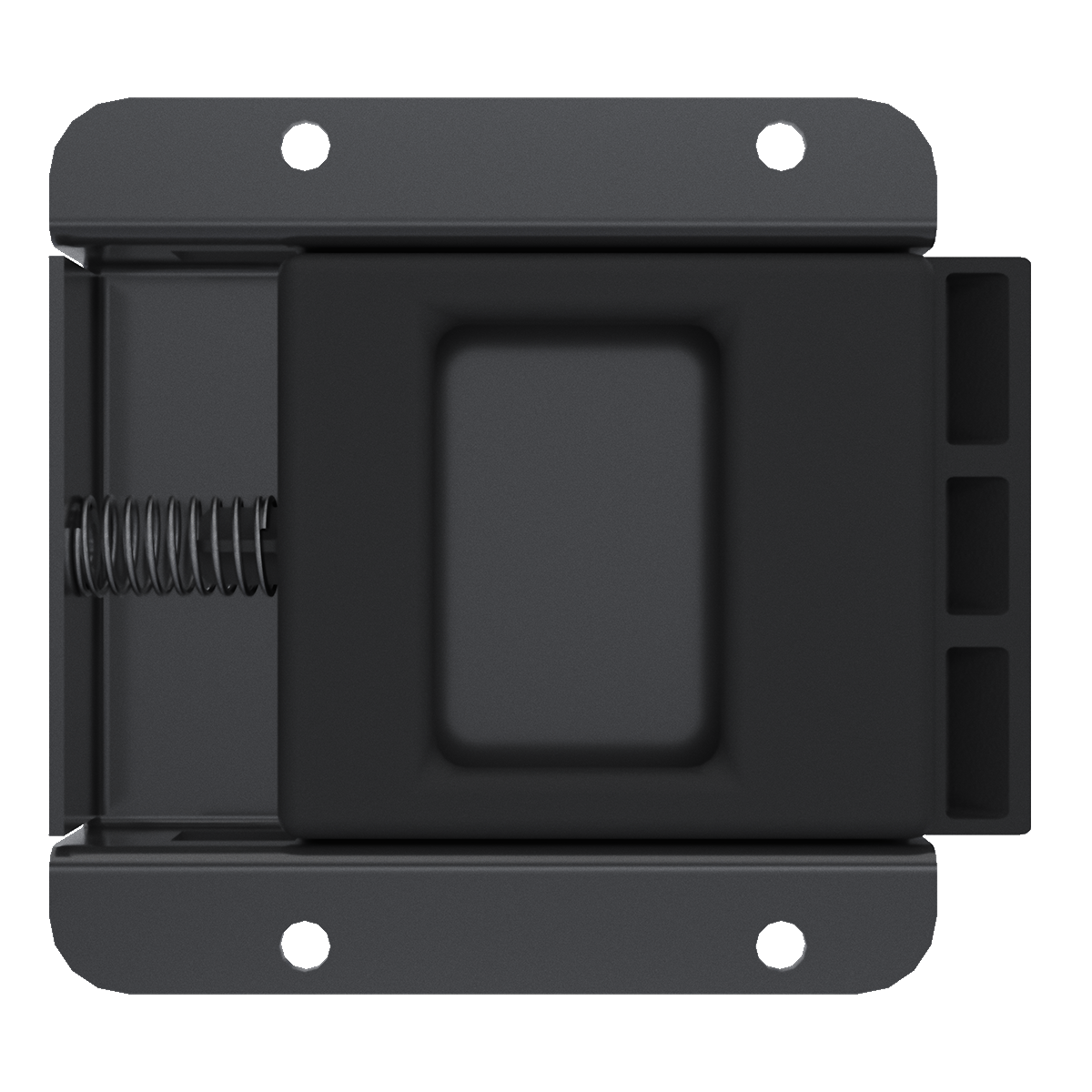

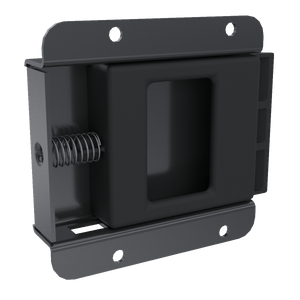

Slides sideways to open and closes with a push, so one hand releases the door, and one hand secures it. The wide slide spreads finger load and holds alignment through repeated cycling. Works from inside or outside the enclosure.
Fits electrical enclosures, control cabinets, machine guards, equipment covers, transit and vehicle compartments, kiosks and gaming cabinets, anywhere a flat door face keeps service aisles and walkways clear of protruding handles.

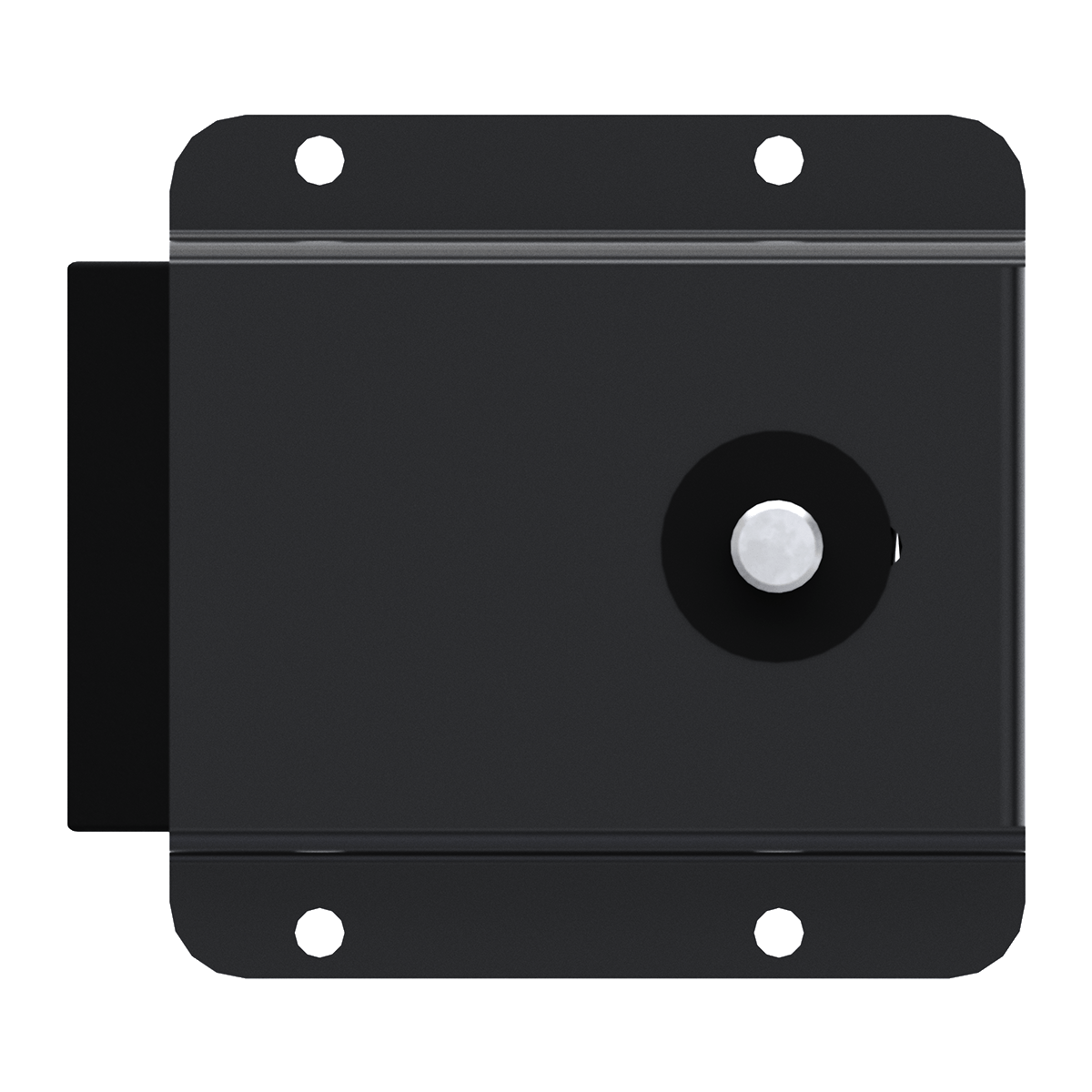

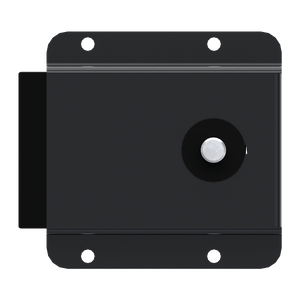

The housing sits behind the door panel, leaving the exterior face flat and providing a wide opening that clears gloved fingers. Rated UL94-HB for flammability. The B7 series also offers keylocking versions when controlled access is required.

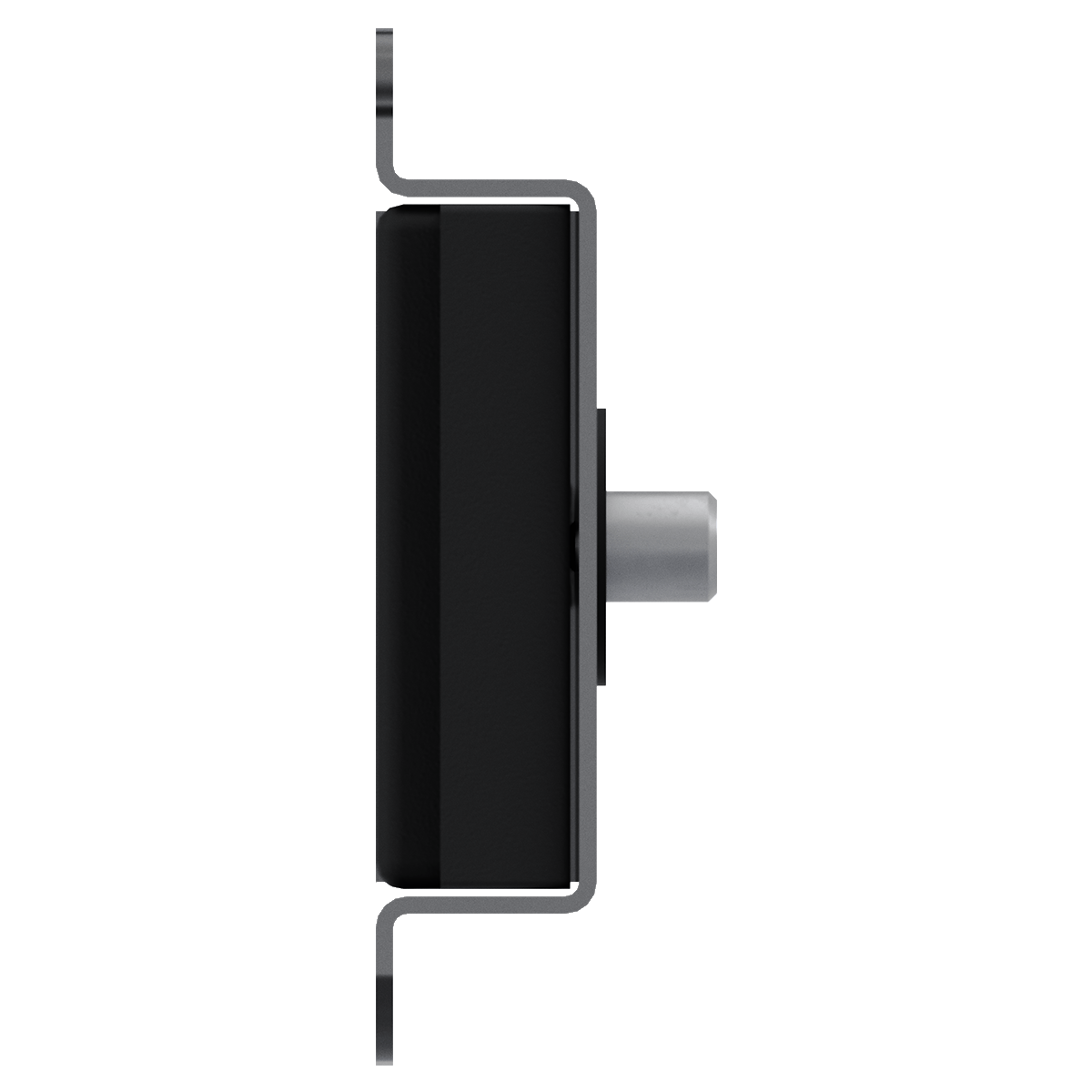

Steel and plastic construction in black, measuring 3-7/8-inch [98.6mm] wide by 1-3/16-inch [29.5mm] high with 3-1/2-inch [88.9mm] depth behind the panel. At 0.28lb [0.1kg], it adds almost no load to light-gauge doors.
Mount by welding, with rivets, or with a thin-profile flush-trim plate with integral studs, so that one latch covers a range of sheet-metal gauges. Running without the trimplate removes panel thickness limits. Made in the United States.
