Specifications :

• MFG Part Number : CFWNSM5
• Product Group: CFWNS
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M5x0.8
• Thread Code: M5
• Hole Diameter: 6.35 +0.10 -0.00
• Sheet Thickness: 0.77

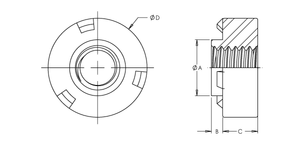

• Dim A Max.: 6.32
• Dim B Max.: 0.77
• Dim C: 3.78 ±0.10
• Dim D: 11.17 +0.00 -0.25
• CL to Edge Distance: 5.59
• 1.500mm 300 Series Stainless Steel Push Out: 4000 N
• 1.500mm 300 Series Stainless Steel Torque Out: 12.4 N-m
