Specifications :

• MFG Part Number : CFWNSM3
• Product Group: CFWNS
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Metric
• Thread Size: M3x0.5
• Thread Code: M3
• Hole Diameter: 4.39 +0.10 -0.00
• Sheet Thickness: 0.77

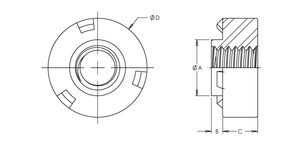

• Dim A Max.: 4.36
• Dim B Max.: 0.77
• Dim C: 1.49 ±0.10
• Dim D: 7.82 +0.00 -0.25
• CL to Edge Distance: 3.91
• 1.500mm 300 Series Stainless Steel Push Out: 3020 N
• 1.500mm 300 Series Stainless Steel Torque Out: 1.4 N-m
