Specifications :

• MFG Part Number : CFWNS632
• Product Group: CFWNS
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 6-32 UNC
• Thread Code: 632
• Hole Diameter: 0.193 +0.004 -0.00
• Sheet Thickness: 0.03

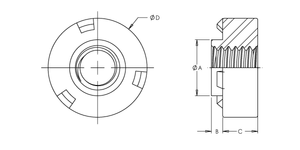

• Dim A Max.: 0.192
• Dim B Max.: 0.03
• Dim C: 0.094 ±0.004
• Dim D: 0.341 +0.000 -0.010
• CL to Edge Distance: 0.171
• .060in 300 Series Stainless Steel Push Out: 800 lbs
• .060in 300 Series Stainless Steel Torque Out: 28 in-lbs
