Specifications :

• MFG Part Number : CFWNS1032
• Product Group: CFWNS
• Material: Stainless Steel; 300 Series
• Finish: Passivated
• Thread Type: Imperial
• Thread Size: 10-32 UNF
• Thread Code: 1032
• Hole Diameter: 0.250 +0.004 -0.00
• Sheet Thickness: 0.03

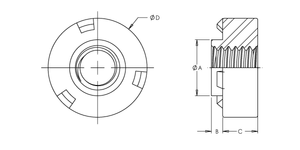

• Dim A Max.: 0.249
• Dim B Max.: 0.03
• Dim C: 0.156 ±0.004
• Dim D: 0.440 +0.000 -0.010
• CL to Edge Distance: 0.22
• .060in 300 Series Stainless Steel Push Out: 900 lbs
• .060in 300 Series Stainless Steel Torque Out: 110 in-lbs
