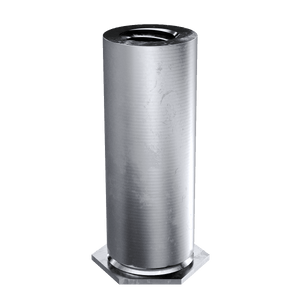

Self-Clinching Standoff, Thin Sheet, 300 Series Stainless Steel, Passivated, 2-56 x 0.250, Full Thread, Hole Dia.: 0.213, 100 Pack

Self-Clinching Standoff, Thin Sheet, 300 Series Stainless Steel, Passivated, 2-56 x 0.250, Full Thread, Hole Dia.: 0.213, 100 Pack

Self-Clinching Standoff, Thin Sheet, 300 Series Stainless Steel, Passivated, 2-56 x 0.250, Full Thread, Hole Dia.: 0.213, 100 Pack

Self-Clinching Standoff, Thin Sheet, 300 Series Stainless Steel, Passivated, 2-56 x 0.250, Full Thread, Hole Dia.: 0.213, 100 Pack

Self-Clinching Standoff, Thin Sheet, 300 Series Stainless Steel, Passivated, 2-56 x 0.250, Full Thread, Hole Dia.: 0.213, 100 Pack

Specifications :

MFG Part Number : CFTS6256-.250
Product Group: CFTS
Material: Stainless Steel; 300 Series
Finish: Passivated
Thread Type: Imperial
Thread Size: 2-56 UNC
Thread Code: 256

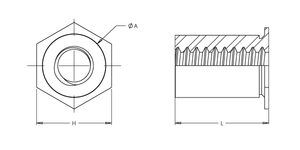

Hole Diameter: 0.213 +0.003 -0.000
Sheet Thickness: 0.025
Dim A: 0.212 +0.000 -0.005
Dim H Nom.: 0.25
Dim L: 0.250 ±0.003
Dim T Min.: 0.2
CL to Edge Distance: 0.27
.025in Steel Installation Force: 2500 lbs
.025in Steel Push Out: 150 lbs
.025in Steel Torque Out: 15 in-lbs
.025in 5052-H34 Aluminum Installation Force: 1800 lbs
.025in 5052-H34 Aluminum Push Out: 90 lbs
.025in 5052-H34 Aluminum Torque Out: 11 in-lbs
