Specifications :

• MFG Part Number : CFTM3.5-800
• Product Group: CFT
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Metric
• Thread Size: M3.5x0.5
• Thread Code: M3.5
• Hole Diameter: 5.41 +0.08 -0.00
• Sheet Thickness: 0.63

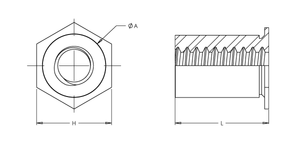

• Dim A: 5.39 +0.00 -0.13
• Dim H Nom.: 6.4
• Dim L: 8.00 ±0.08
• Dim T Min.: 7
• CL to Edge Distance: 7.1
• .640mm CRS Installation Force: 11.1 kN
• .640mm CRS Push Out: 667 N
• .640mm CRS Torque Out: 1.7 N-m
• .640mm 5052-H34 Aluminum Intallation Force: 8.0 kN
• .640mm 5052-H34 Aluminum Push Out: 400 N
• .640mm 5052-H34 Aluminum Torque Out: 1.24 N-m
