Specifications :

• MFG Part Number : CFTM3-1900
• Product Group: CFT
• Material: Steel; Heat Treated
• Finish: Zinc Clear
• Thread Type: Metric
• Thread Size: M3x0.5
• Thread Code: M3
• Hole Diameter: 4.22 +0.08 -0.00
• Sheet Thickness: 0.63

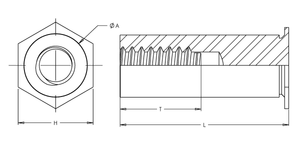

• Dim A: 4.20 +0.00 -0.13
• Dim H Nom.: 4.8
• Dim L: 19.00 ±0.08
• Dim T Min.: 6.2
• CL to Edge Distance: 5.8
• .640mm CRS Installation Force: 8.9 kN
• .640mm CRS Push Out: 445 N
• .640mm CRS Torque Out: 1.0 N-m
• .640mm 5052-H34 Aluminum Intallation Force: 6.7 kN
• .640mm 5052-H34 Aluminum Push Out: 311 N
• .640mm 5052-H34 Aluminum Torque Out: 0.68 N-m
