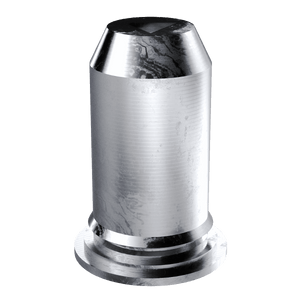

Self-Clinching Tapered Guide Pin, 300 Series Stainless Steel, Passivated, Metric, 6 x 20, 100 Pack
Self-Clinching Tapered Guide Pin, 300 Series Stainless Steel, Passivated, Metric, 6 x 20, 100 Pack
Self-Clinching Tapered Guide Pin, 300 Series Stainless Steel, Passivated, Metric, 6 x 20, 100 Pack
Self-Clinching Tapered Guide Pin, 300 Series Stainless Steel, Passivated, Metric, 6 x 20, 100 Pack

Self-Clinching Tapered Guide Pin, 300 Series Stainless Steel, Passivated, Metric, 6 x 20, 100 Pack

$99,999.00 USD

Specifications :

  • MFG Part Number : CGS6MM-20
  • Product Group: CGS
  • Material: Stainless Steel; 300 Series
  • Finish: Passivated
  • Thread Type: Metric
  • Thread Size: Unthreaded
  • Hole Diameter: 6.5 +0.08 -0.00
  • Sheet Thickness: 1
  • CRS Sheet Hardness: 62 HRB

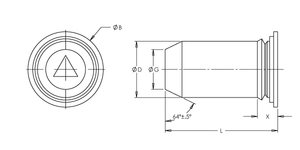

  • Dim B: 8.13 ±0.40
  • Dim D: 6.00 ±0.05
  • Dim G: 4.24 ±0.15
  • Dim L: 20.0 ±0.4
  • X Max.: 2.29
  • CL to Edge Distance: 7.9
  • CRS Installation Force: 39.6 kN
  • CRS Push Out: 2.1 kN
  • 5052 H34 Aluminum Sheet Hardness: 18 HRB
  • 5052 H34 Aluminum Installation Force: 30.8 kN
  • 5052 H34 Aluminum Push Out: 1.1 kN
